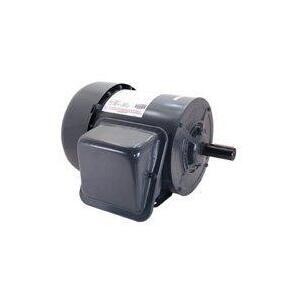

A.O. Smith Electric Motor, 2HP 182T Frame

A.O. Smith Electric Motor, 2HP 182T Frame

The A.O. Smith 2HP 182T Frame Electric Motor is a farm-duty, heavy-use motor built to handle demanding environments without flinching. Delivering 2 horsepower at 1800 RPM, this totally enclosed fan cooled (TEFC) design keeps out dust, dirt, and debris while maintaining reliable performance. With high starting torque (300–400%), manual overload protection, and corrosion-resistant construction, it’s ready for everything from woodworking shops to farm equipment—basically anywhere lesser motors would wave the white flag.

Country of Origin
Varies by production batch

Key Features / Specifications

• Brand: A.O. Smith
• Product Type: Electric motor (farm duty, TEFC)
• Horsepower: 2 HP
• Speed: 1800 RPM
• Voltage: 115/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Full Load Current: 24/12 A
• Frame Size: NEMA 182T / 182TZ
• Mounting: Flat base with 6 holes (13/32" hole diameter, 3-3/4" hole centers)
• Shaft Size: 7/8" diameter x 2-3/4" length
• Shaft Rotation: Reversible
• Bearing Type: Ball bearings
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Insulation Class: F
• Ambient Temperature Rating: 40°C
• Service Factor: 1.0
• Starting Torque: High (300–400% of full load torque)
• Protection: Manual overload protector with reset button
• Construction: Corrosion-resistant components
• Additional Features:
  • Removable condensate drain plugs
  • Gasketed junction box and capacitor covers

Ideal For

• Woodworking equipment exposed to sawdust and debris
• Farm-duty applications where dirt, oil, and moisture are part of the job
• Industrial machines requiring reliable 2 HP power with high starting torque
• Equipment needing a TEFC motor for protection in harsh environments
• Users who want a motor that keeps running without constant babysitting
