Air Brake Tubing, 1/2"OD

Air Brake Tubing, 1/2"OD 535Psi -50F to +200F

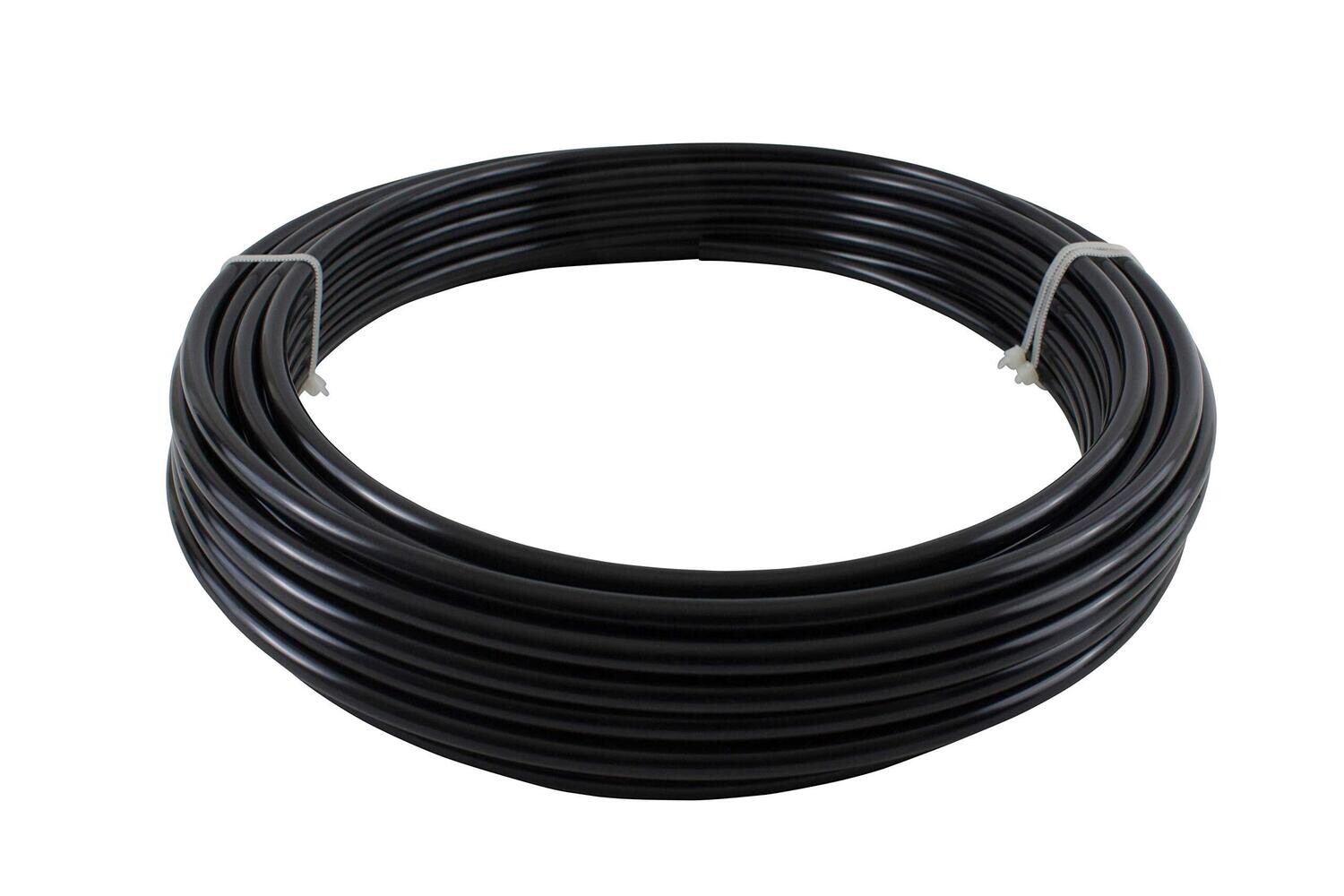

The 74203787 Air Brake Tubing (1/2" OD) is a high-performance nylon air line designed for heavy-duty air brake and pneumatic systems. Built from durable nylon material, this tubing provides excellent flexibility, pressure resistance, and temperature stability, making it ideal for demanding vehicle and equipment applications. With a maximum working pressure of 535 PSI and an operating temperature range from -50°F to +200°F, it performs reliably in both freezing winters and hot operating environments. In short, it’s the kind of air line that keeps air systems working properly instead of leaving you chasing leaks in the cold.

Country of Origin
Made in the U.S.A.

Key Features / Specifications

• Model / Part Number: 74203787
• Product Type: Air brake tubing
• Material: Nylon
• Tube Color: Black
• Outside Diameter: 1/2 inch
• Inside Diameter: 3/8 inch (0.3750")
• Wall Thickness: 1/16 inch (0.0620")
• Flexibility: Flexible tubing
• Hardness: Shore 78D
• Maximum Working Pressure: 535 PSI
• Temperature Range: -50°F to +200°F
• Standard Coil Length: 100 feet
• Configuration: Single tube
• UNSPSC Code: 40141900
• Application: Designed for air brake systems and pneumatic lines

Ideal For

• Air brake system plumbing on trucks, trailers, and heavy equipment
• Pneumatic air line applications requiring flexible tubing
• Vehicle maintenance or repair of air brake systems
• Cold-weather and high-temperature environments where reliable tubing is critical
• Mechanics who appreciate air lines that stay flexible instead of turning into rigid plastic when the temperature drops
