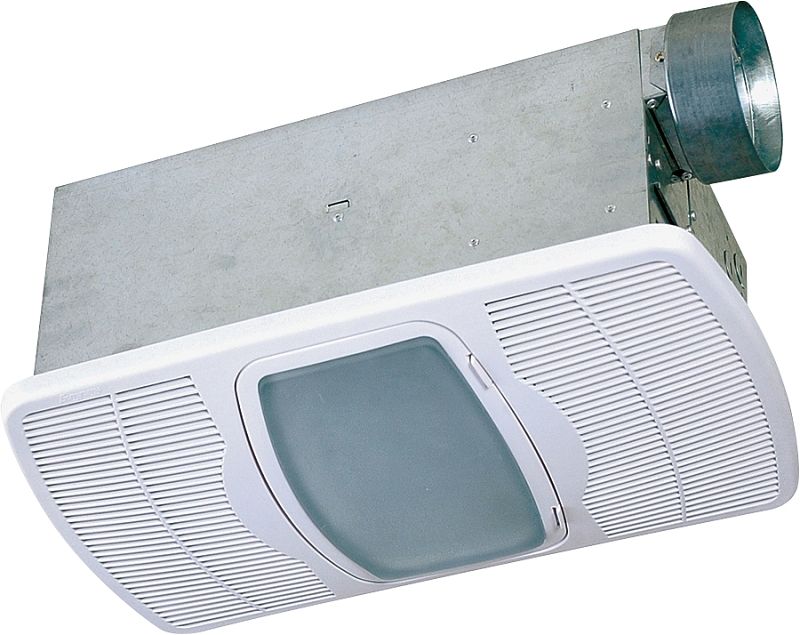

Air King AK55L Combination Bathroom Exhaust Fan/Ceramic

Air King AK55L Combination Bathroom Exhaust Fan/Ceramic

Heater, exhaust fan and light combination. Installs in ceiling. Heater blower wheel is one piece metal and electronically balanced. Ventilation blower wheel is one-piece polymeric and electronically balanced. Ultra safe ceramic heating element bonded to large heat transfer surface allows heating at very low operating temperature. Self-regulating design provides 1350 W. Moonstone glass lens, installed in a flip down lens holder. 100 W incandescent capacity, type A lamp required, bulb not included. UL listed. HVI2100 certified. Duct collar 4 in round, zinc-plated metal collar adapter with aluminum back draft damper.

Description du français:

COMBI VENTILATEUR SDB 70 PI /MIN 5 SONES

Descripción español:

EXTRACTOR PARA BANO COMB DE 1,98 M3/MIN 5 SONES

Product Details

Air Flow Rate:

70 cfm

Color:

White

Current Rating:

0.3 A

Dimensions:

6.5 in L x 14.5 in W x 8.4 in H

Duct Size:

4 in

Frequency Rating:

60 Hz

Grill Shape:

Round

Includes:

Blower Ceramic Heating Element Damper and Duct Collar Grill with Glass Light Lens Hanger Bars

Material:

Metal

Sound Level:

5 Sone sones

Speed Rating:

2575 rpm

Voltage Rating:

120 V

Wattage Rating:

54 W

Features

Moonstone glass light lens

Self-regulating ceramic heating element provides 1350 W of safe and effective warmth

Easily installs using the included adjustable hanging brackets

4 in plastic damper protects against backdrafts and ensures quiet operation

All functions can be wired to operate separately

White, polymeric grill secured in place using two hex nuts, which can be easily removed if necessary

Heater blower wheel, one-piece metal electronically balanced, 3-11/16 x 2 in with 28 fins

Ventilation blower wheel - one piece polymeric electronically balanced

Heavy-duty heater motor-, plug-in 2 pole motor, life time lubrication, thermally protected

Heavy-duty Ventilation motor plug in 2-pole motor
