Anderson Power 50A X 6Ga Stand-By Generator Plug

Anderson Power 50A X 6Ga Stand-By Generator Plug

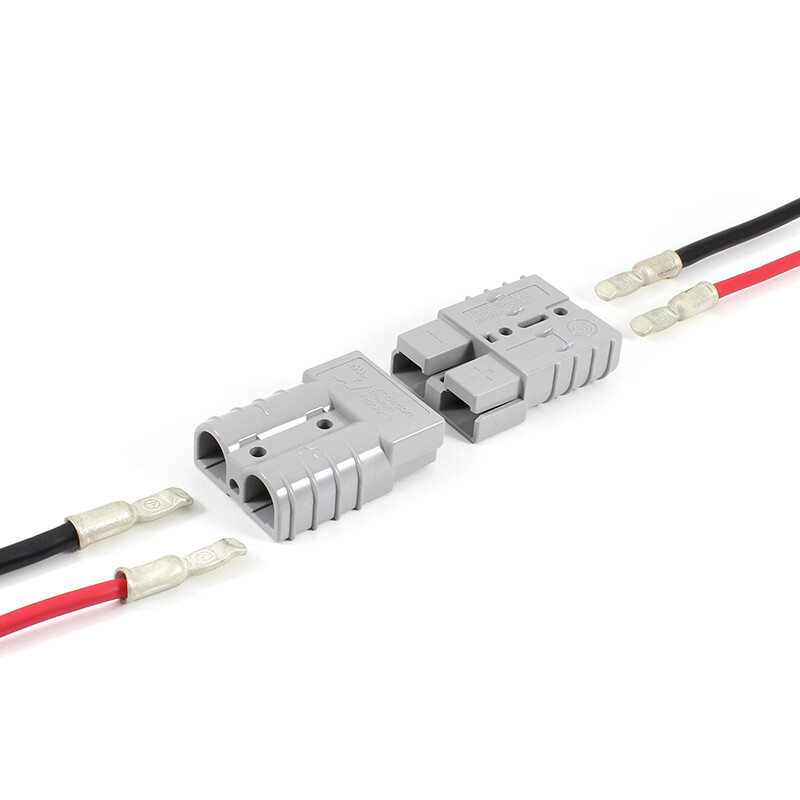

The 07394 Anderson Power 50A X 6Ga Stand-By Generator Plug is a high-current, color-keyed SB50 connector kit designed for dependable power transfer in standby generator and DC power applications. Built with silver-plated copper contacts, a durable polycarbonate housing, and a stainless steel spring system, this connector delivers low resistance, secure engagement, and long service life—even with frequent connect and disconnect cycles.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 07394
• Brand / Series: Anderson Power Products – SB50
• Current Rating: 50 Amps
• Wire Gauge Compatibility: 6 AWG
• Connector Type: SB Connector Kit (includes 1 housing + 2 contacts)
• Contact Material: Silver-plated copper
• Average Contact Resistance: 500 micro-ohms
• Contact System: Flat wiping contact design
• Mating Cycles: Rated for up to 10,000 no-load connect/disconnect cycles
• Spring Mechanism: Stainless steel spring applying approx. 50 lbs. contact pressure
• Housing Material: High-impact polycarbonate
• Flammability Rating: UL94 V-0
• Design Features: Genderless and polarized
• Color Keyed: Mates only with the same color housing (SB50 black also mates with gray)

Ideal For

• Stand-by generator connections
• DC power systems and battery applications
• Mobile power setups requiring quick, secure disconnect capability
• Applications where color coding prevents cross-connection of different voltages
• Installations needing a durable, vibration-resistant high-current connector

With rugged construction and foolproof mating design, it’s a connector that keeps power flowing—without keeping you guessing.
