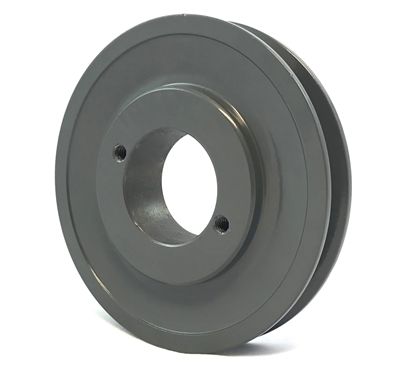

B-Pulley, 5.95" X H-Bore

B-Pulley, 5.95" X H-Bore

This Pulley uses an H-Series Bushing, is directly interchangeable with other manufacturers and is manufactured in accordance with ARPM Standard IP20 for safe operation. With AK series pulleys you can use A, 4L, B, 5L, AX, BX, AA, and BB belts. What separates this pulley from the others is that it is made using a high-grade cast iron, is phosphate coated, painted, and balanced at the factory. Using the high-grade cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the pulley. Then, because this pulley is dynamically balanced it runs smoother which gives bearings and other components of the equipment a longer working life. Additionally, we stock a full line of premium A, 4L, B, 5L C, belts, H-bushings, shafting, key-stock, motors, bearings, and much more!

BK62H Pulley Dimensions

• Pulley Size: BK62H
• Outside Diameter (O.D.): 5.95"
• Pitch Diameter For 4L/A Belts (P.D.): 5.20"
• Pitch Diameter For 5L/B Belts (P.D.): 5.60"
• Pulley Type: 2
• Dimension (O.L.): 1-1/2"
• Dimension (F): 7/8"
• Dimension (L): 1-1/4"
• Dimension (P): 7/16"
• Dimension (X): 7/8"
• Dimension (G): 7/16"
• Dimension (E): 3/16"
• Weight: 2.6 LBS
