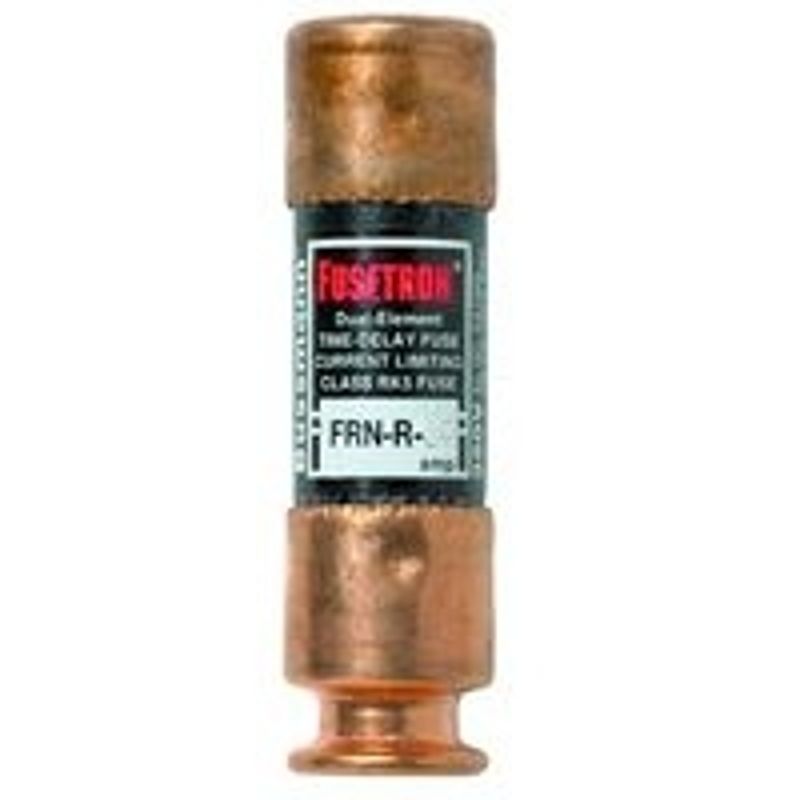

Bussman BP/FRN-R-60 Delay Cartridge Fuse, 60A 2pk

Bussman BP/FRN-R-60 Delay Cartridge Fuse, 60A 2pk

Bussmann Series Fusetron cartridge fuses are 23% more energy-efficient and offer the excellent time delay performance. Their dual element feature allows closer sizing to load for great protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present.

Descripción español:

FUSIBLE DE CARTUCHO DE RETAR 2 ELEM 60 A

Product Details

Body Material:

Fiberglass

Current Rating:

60 A

Diameter:

13/16 in

Element Type:

Dual

Fuse Group:

K

Fuse Type:

Time Delay

Indicator Type:

Non-Indicating

Interrupt Rating:

20 200 kA

Length:

3

Rejection/ Non- Rejection:

Rejection

Terminal Type:

Ferrule

Voltage Rating:

250 VAC 125 VDC

Features

Provides motor overload, ground fault and short-circuit protection

Helps protect motors against burnout from overloads

Helps protect motors against burnout from single-phasing on three-phase systems

Simplifies and improves blackout prevention

Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance short-circuit and overload protection

The overload element provides protection against low level overcurrent of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 secs
