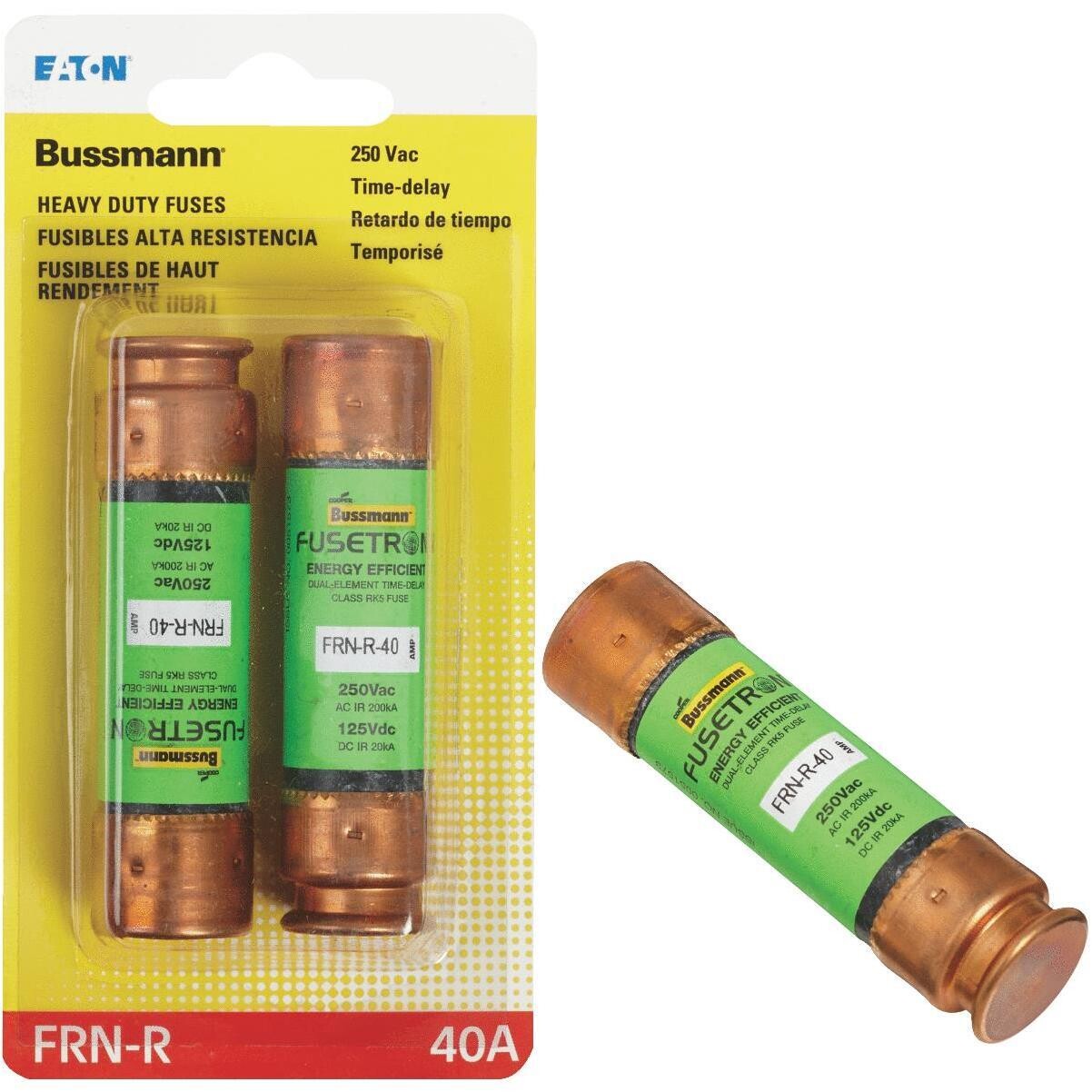

Name: Bussman BP/FRNR-40 Delay Cartridge Fuse, 40A 2pk
Brand: Bussman Fuses
SKU: 620-2204
Price: 13.99 USD
Availability: InStock

Bussman BP/FRNR-40 Delay Cartridge Fuse, 40A 2pk

PRODUCT OVERVIEW

Bussmann Series Fusetron cartridge fuses are 23% more energy efficient and offer the best time delay performance. Their dual element feature allows closer sizing to load for superior protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present

Features

Provides motor overload, ground fault and short circuit protection

Helps protect motors against burnout from overloads

Helps protect motors against burnout from single-phasing on three-phase systems

Simplifies and improves blackout prevention

Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection

The overload element provides protection against low level overcurrent of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 secs
