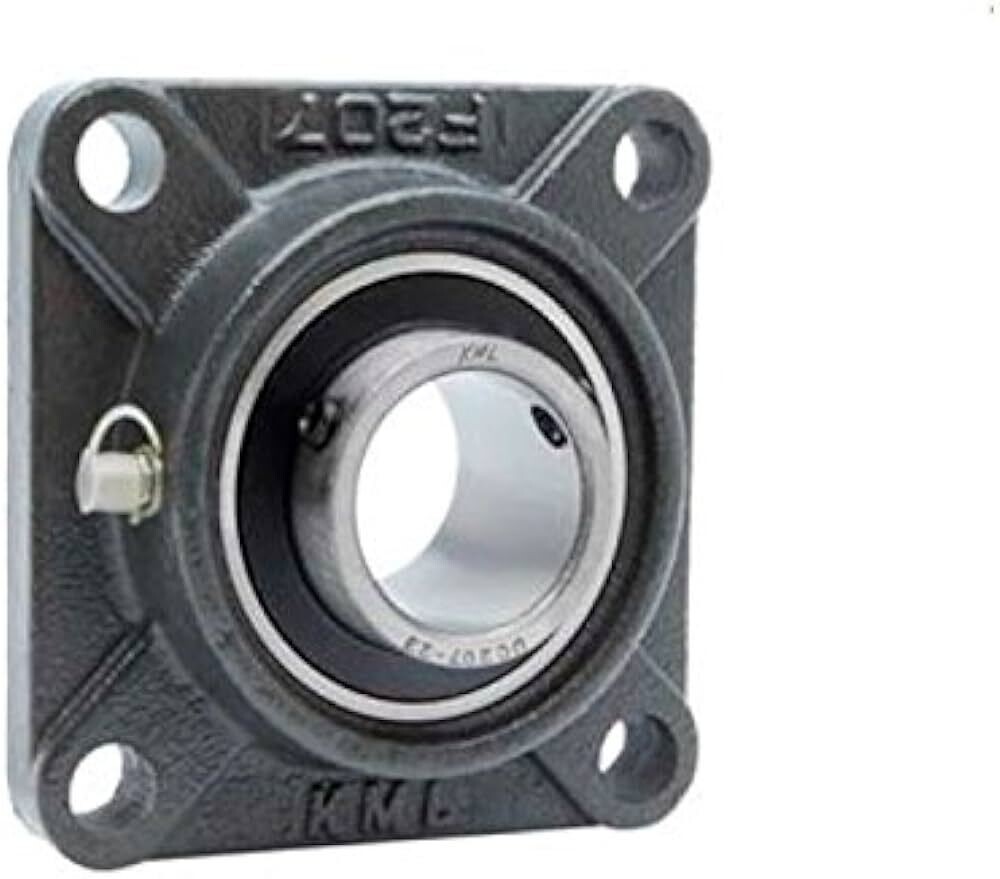

Cast 4-Bolt Flange Bearing, 1-15/16" HD

KML Cast 4-Bolt Flange Bearing, 1-15/16" HD

UCF210-31 bearing is a 1-15/16" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-15/16" shaft. UCF210-31 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF210-31 bearing with a 1-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF210-31 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF210-31 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF210-31 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there.

UCF210-31 Bearing Dimensions

• Part #: UCF 210-31
• Shaft Diameter (d): 1-15/16"
• Dimension (A): 5.38"
• Dimension (E): 4.13"
• Dimension (I): 0.88"
• Dimension (G): 0.71"
• Dimension (L): 1.56"
• Dimension (S): 0.63"
• Dimension (Z): 2.13"
• Dimension (Bi): 2.0315"
• Dimension (N): 0.7480"
• Dimension (M): 1.12835"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UC 210-31
• Housing Number: F 210
• Weight (LBS): 7.5
