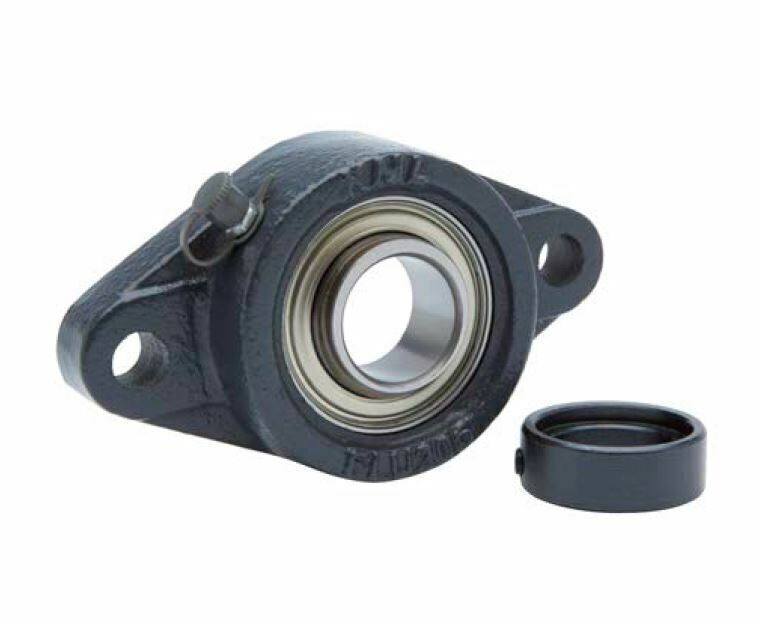

KML Cast Flange Bearing, 1-1/2" 2-Bolt

KML Cast Flange Bearing, 1-1/2" 2-Bolt

SAFT bearing is a two-bolt normal-duty flange bearing that utilizes set screws to secure to a shaft. SAFT flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SAFT bearing is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SAFT bearing has added features that improve the overall life and performance of the unit, such as a steel retainer, anti-rotation device, relubricating capabilities, and strategically placed setscrews. SAFT bearings are commonly used in applications such as construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more

SAFT208-24 Bearing Dimensions

• Part #: SAFT 208-24
• Shaft Diameter (d): 1-1/2"
• Dimension (A): 6.75"
• Dimension (E): 5.656"
• Dimension (I): 0.83"
• Dimension (G): 0.56"
• Dimension (L): 1.50"
• Dimension (S): 0.51"
• Dimension (B): 4.13"
• Dimension (Z): 2.02"
• Dimension (Bi): 1.9370"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UC 208-24
• Housing Number: FT 208
• Weight (LBS): 3.3
