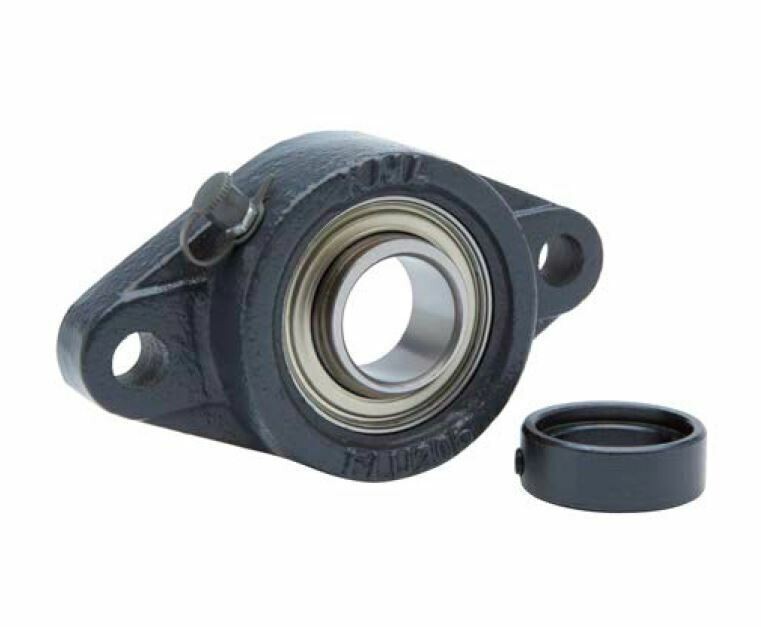

Cast Flange Bearing, HD 1-1/4" 2-Bolt

Cast Flange Bearing, HD 1-1/4" 2-Bolt

SAFT bearing is a two-bolt normal-duty flange bearing that utilizes set screws to secure to a shaft. SAFT flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SAFT bearing is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SAFT bearing has added features that improve the overall life and performance of the unit, such as a steel retainer, anti-rotation device, relubricating capabilities, and strategically placed setscrews. SAFT bearings are commonly used in applications such as construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more

SAFT207-20 Bearing Dimensions

• Part #: SAFT 207-20
• Shaft Diameter (d): 1-1/4"
• Dimension (A): 6.13"
• Dimension (E): 5.125"
• Dimension (I): 0.75"
• Dimension (G): 0.56"
• Dimension (L): 1.34"
• Dimension (S): 0.51"
• Dimension (B): 3.75"
• Dimension (Z): 1.75"
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-20
• Housing Number: FT 207
• Weight (LBS): 2.9
