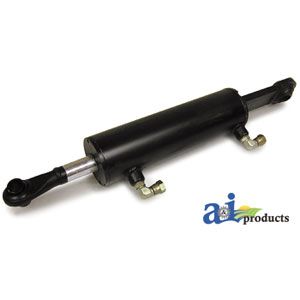

Cat II Hydraulic Top-Link, 26"-34" Length

This Category II Hydraulic Top Link is a heavy-duty 3-point hitch top link cylinder built to add fast, precise implement adjustment from the tractor seat. With a 26" compressed length, 8" stroke, and an extended length up to 34", it’s ideal for dialing in pitch on rear implements for better grading, cutting, and ground engagement. It includes .563"-18 ORB ports and comes with two swivel 90° adapters to simplify hose routing and installation.

Country of Origin: Varies by production batch

Key Features / Specifications

• Category: Cat II hydraulic top link
• Length range: 26"–34"
• Compressed length: 26"
• Stroke: 8"
• Working pressure: 1450 PSI (as listed)
• Ports: .563"-18 ORB (all ports)
• Adapters included: (2) .563"-18 ORBM x .250 NPTM 90° swivel adapters
• Barrel length: 12.438"
• Base to ball center length: 5.500"
• Rod end ball inside diameter: 1"
• Rod end ball width: 1.750"
• Replaces: Gannon 13-827

Ideal For:

• Category II 3-point hitch tractors needing hydraulic top link control
• Box blades, rear blades, rakes, and other implements requiring pitch adjustment
• Grading and leveling work where quick angle changes save time
• Replacing a worn top link cylinder with a compatible Cat II unit
