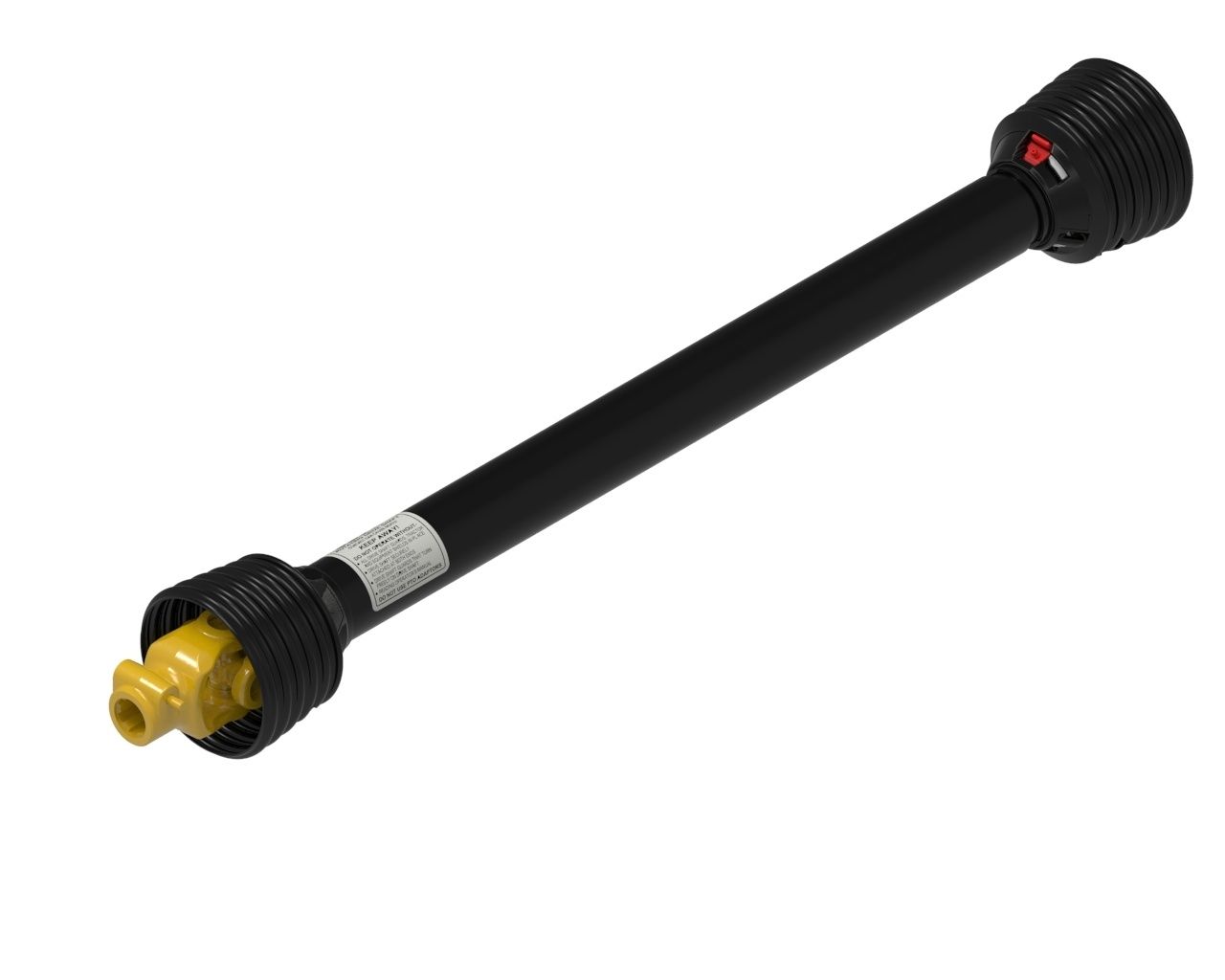

Built for continuous heavy-duty, all-purpose use from tractor to implement, this Weasler 3-Series 60" complete PTO shaft assembly is a high-performance driveline solution trusted across agriculture and lawn & turf. It’s designed to meet the demands of large farms and contractors, with cut-to-length adjustability, broad interchangeability with common competitor models, and a rugged guard and component system engineered for long service life and safer operation.
Country of Origin
Varies by production batch
Key Features / Specifications
- Brand/Type: Weasler high performance PTO drive shaft — complete tractor-to-implement assembly
- Series: 3-Series
- Length (overall): 60.00 in (1524 mm)
- Compressed (closed) length: 51.57 in (1310 mm)
- Compressed overall length: 60.00 in (1524 mm)
- Extended length: 81.73 in (2076 mm)
- Extended overall length: 90.00 in (2286 mm)
- Bore/Connection (tractor end): 1-3/8" 6-spline (1.37" / 35 mm)
- Bore/Connection (implement end): Minus End Yoke
- Connection 1: Quick Disconnect
- Connection 2: Yoke Arms
- Horsepower rating @ 1000 RPM: 44 HP (33 kW)
- Horsepower rating @ 540 RPM: 29 HP (22 kW)
- Outside diameter: 6.00 in (152 mm)
- Weight: 25.12 lb (11 kg)
- Shipping dimensions: 55.59" L × 6" H × 6" W (141 cm × 15 cm × 15 cm)
- Shipping weight: 25.12 lb (11 kg)
- Shipping volume: 2001.24 in³ (32795 cm³)
Design & Performance Features
- Cut-to-length adjustability for proper fit
- Interchangeable design to fit most competitor models
- Shaft profile options available (varies by configuration): tri-lobe, lemon, and star
- Easy Lock Guard construction allows quick assembly/removal using simple tools (key/coin/screwdriver)
- Easy Lock Guard System: full coverage at maximum angles, 360° friction-welded guard bell, UV/ozone-resistant black coloring, cold-weather impact rated to -35°C, meets/exceeds applicable safety standards
- Yokes: interchangeable with other Weasler yokes and common market yokes; cast iron collars; through-bore helps prevent debris buildup
- Cross & bearing kits: high torque capacity and longer life; high-quality steel; standard kits upgradable/interchangeable with E-Kits
- Optional Extended Lubrication E-Kits (where equipped): longer lubrication intervals (50–250 hours) and triple-lip high-temp seal for improved grease retention
- Shared component designs across Weasler domestic and metric product lines
Ideal For
- Heavy-duty PTO-driven implements requiring a 3-Series driveline
- Large farms, contractors, and frequent-use applications needing durable, serviceable PTO performance
- Replacing a worn PTO shaft with a complete tractor-to-implement assembly
- Users who want quick-disconnect convenience and a guard system designed for easier installation/removal and strong coverage
