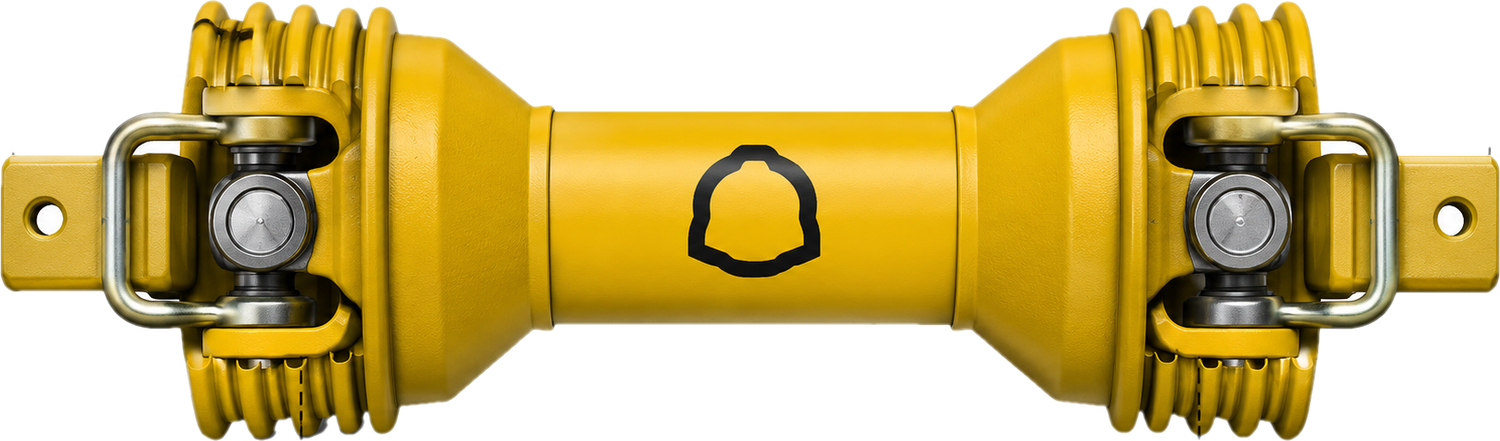

Complete Pto Shaft Assy, 5-Series 48", 1-3/8-6 QD X 1-3/8-6 QD (53HP@540/83HP@1000)

Complete Pto Shaft Assy, 5-Series 48", 1-3/8-6 QD X 1-3/8-6 QD

The A-CS53811 Complete PTO Shaft Assembly is a heavy-duty Size 5, Category 4 driveline for compatible rotary cutter and Bondioli & Pavesi applications. It uses 1-3/8 in. 6-spline quick-disconnect yokes on both tractor and implement ends and is rated for up to 47 HP. Supplied with cross kits, yokes, shielding, and the necessary driveline components, it is a genuine alternative replacement that is ready to install after verifying—and, if needed, carefully trimming—the length for safe tube overlap and clearance.

Country of Origin

Varies by production batch

Key Features / Specifications

• Model / Part Number: A-CS53811
• Product Type: Complete PTO shaft / rotary cutter driveline assembly
• Series: 100 Series
• Size: 5
• Category / Power Rating: Category 4 — 47 HP
• Duty Rating: 6 ft. heavy-duty
• Tractor End: 1-3/8 in. 6-spline quick-disconnect yoke
• Implement End: 1-3/8 in. 6-spline quick-disconnect yoke
• Minimum C-to-C Length: 38 in. (965 mm)
• Maximum C-to-C Length: 58 in. (1,470 mm)
• Collapsed Length: 46 in. (1,168 mm)
• Fitment: Compatible with applicable Bondioli & Pavesi driveline applications
• Installation Note: Driveline may require cutting to the correct length; ensure adequate telescoping-tube overlap in every working position and prevent bottoming out
• Replacement Type: Genuine alternative to original part
• Included Components:
  • A-BP125101500-A — Outer Tube — Qty. 1
  • A-BP204056860-CS — Outer Tube Yoke — Qty. 1
  • A-BP204056861-CS — Inner Tube Yoke — Qty. 1
  • A-BP41205-A — Cross & Bearing Kit — Qty. 2
  • A-BP507050351-A — Tractor Yoke, 1-3/8 in. 6-Spline with QDP — Qty. 2
  • A-P10X60 — 10 mm x 60 mm Roll Pin, 2-Pack — Qty. 1
  • A-P10X70 — 10 mm x 70 mm Roll Pin, 2-Pack — Qty. 1
  • A-SK2C — Shield & Bearing Kit for CS5-CS8 — Qty. 1
• Replaces:
  • D756560 — Driveline
  • PM14006546 — John Deere
  • PM14046560 — John Deere
• Crossed From:
  • AM14006546 — A & I Mega-Cross
  • W14006546DS — Case IH
  • W14046560DS — Case IH
  • A-14006543 — A & I Mega-Cross
  • A-14006546 — A & I Mega-Cross
  • 14006546ST — A & I Mega-Cross
  • A-14016542 — A & I Mega-Cross
  • A-14046560 — A & I Mega-Cross
  • 971-14006546 — A & I Mega-Cross

Ideal For

• Replacing a damaged or worn PTO driveline on compatible rotary cutters
• Equipment using a Size 5, Category 4 driveline rated for up to 47 HP
• Tractor and implement setups requiring 1-3/8 in. 6-spline QD yokes at both ends
• Bondioli & Pavesi-compatible applications needing a complete replacement assembly
• Repairs where proper PTO shaft measurement matters—because a driveline should telescope, not audition as a hydraulic ram
