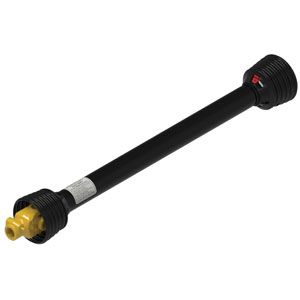

Complete Pto Shaft Assy, 5-Series 48", 1-3/8-6 X 1-3/8-6 (53HP@540/83HP@1000)
SKU A-BP512100101-A
$229.99
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Complete Pto Shaft Assy, 5-Series 48", 1-3/8-6 X 1-3/8-6 (53HP@540/83HP@1000)
Product Details
Weight: 42.00 lbs
Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-CLength: 74" (1890 mm), Total Collapsed Length: 56" (1430 mm). Tractor end: 1-3/8" - 6 Spline . Implement end: 1-3/8" - 6 Spline. Series: 100. Category 4 (47 hp). Fits Bondioli & Pavesi 100 Series: Size 5.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Genuine alternative to original part.
C to C Max: 1890 MM/ 74"
C to C Min: 1210 MM/ 48"
Category: 4 (47HP)
Implement: 1 3/8" - 6
Series: 100
Size: 5
Total Collapsed Length: 1430MM/ 56"
Tractor: 1 3/8" - 6
| Alternative Item: | Description | 1 to 1 of 1 |
| A-14046548 | Complete Driveline Less Implement Yoke |
| Part Components | Description | Order Qty | 1 to 8 of 8 |
| A-BP125101500-A | Outer Tube | 1 | |
| A-BP204056860-CS | Outer Tube Yoke | 1 | |
| A-BP204056861-CS | Inner Tube Yoke | 1 | |
| A-BP41205-A | Cross & Bearing Kit | 2 | |
| A-BP507050351-A | Tractor Yoke, Splined 1 3/8" - 6 Spline w/ QDP | 2 | |
| A-P10X60 | Roll Pin, 10 MM x 60 MM, 2 pack | 1 | |
| A-P10X70 | Roll Pin, 10 MM x 70 MM, 2 pack | 1 | |
| A-SK2C | Shield & Bearing Kit; CS5-CS8 | 1 |
| Sections and Models | 1 to 2 of 2 | |
| Driveline > Driveline Assembly | ||
| (Miscellaneous) Alternative PTO QD: (UNDEFINED) | ||
| Bondioli & Pavesi 100 Series: Size 5 | ||
