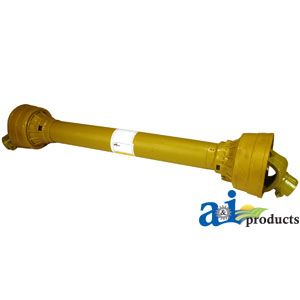

Complete Pto Shaft Assy, 8-Series 48", 1-3/8"-6 X 1-3/8"-6, (95HP@540/150HP@1000)

Complete Pto Shaft Assy, 8-Series 48", 1-3/8"-6 X 1-3/8"-6

The A-CS84811 Complete PTO Shaft Assembly is a heavy-duty, high-horsepower driveline built for demanding agricultural equipment that requires serious power transfer and durability. Designed as a Series 100, Size 8 shaft, it’s rated up to 95 HP at 540 RPM and 150 HP at 1000 RPM, making it ideal for large implements and high-load applications. With 1-3/8" 6-spline connections on both ends and cut-to-length adjustability, this shaft delivers both strength and flexibility—because when you’re running big equipment, the driveline can’t be the weak link.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-CS84811
• Product Type: Complete PTO shaft assembly
• Series / Size: Series 100, Size 8 driveline
• Category Rating: Category 6 (95 HP @ 540 RPM / 150 HP @ 1000 RPM)
• Connection (Tractor): 1-3/8" – 6 spline
• Connection (Implement): 1-3/8" – 6 spline
• Minimum Length (C-to-C): 48 in. (1210 mm)
• Maximum Length (C-to-C): 74 in. (1880 mm)
• Collapsed Length: 58 in. (1455 mm)
• Adjustment: May require cutting to proper length for correct fitment
• Application: Heavy-duty PTO-driven equipment and 3-point hitch systems

Cross Reference / Replaces

• Bondioli & Pavesi: A-BP812100101-A
• EDCOR: A-BP108-1210-A
• John Deere: PM14046860
• Case-IH: W14006857DS, W14046848DS, W14046860DS
• Vapormatic: VTE1007
• A&I: A-14006846, A-14006857, A-14046848, A-14046860, 971-14006857, 971-14046848
• Miscellaneous: D756860, PM14006857, PM14046848

Ideal For

• Powering large rotary cutters, heavy-duty mowers, and high-load implements
• Agricultural operations requiring high horsepower driveline capacity
• Equipment setups needing adjustable shaft length for proper fit
• Replacing worn shafts with a multi-brand compatible heavy-duty option
• Anyone who needs a PTO shaft that handles serious power without flinching—or turning into the next repair bill
