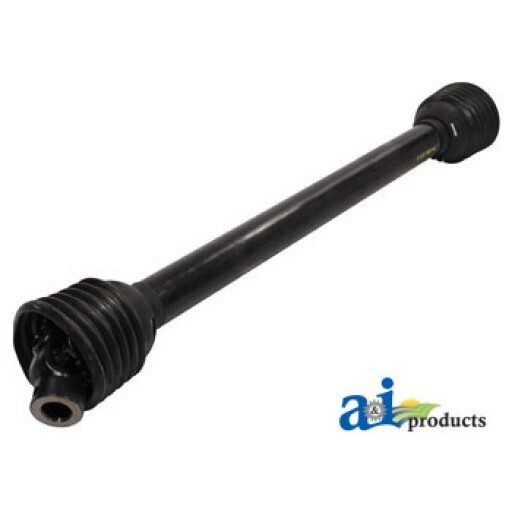

The CS45515 Complete PTO Shaft Assembly is a heavy-duty hay tedder driveline built to fit Bondioli & Pavesi 100 Series applications. Equipped with a Category 3, Size 4 driveline and an RP3 slip clutch on the implement end, it’s designed to protect your tedder drivetrain from shock loads while delivering reliable power transfer in the field.
Country of Origin: Italy
Key Features / Specifications
- Part number: CS45515
- Driveline series: Fits Bondioli & Pavesi 100 Series
- Driveline category: Category 3
- Size: Size 4
- Power rating: 35 HP
- Clutch type: RP3 slip clutch (implement end)
- Minimum center-to-center length: 55" (1400 mm)
- Maximum center-to-center length: 82" (2080 mm)
- Total collapsed length: 66" (1675 mm)
- Tractor end: 1-3/8" 6-spline yoke
- Implement end: 1-3/8" 6-spline RP3 clutch
Ideal For:
- Hay tedders needing a complete replacement driveline in the B&P 100 Series format
- Operators who want built-in driveline protection from overloads via an RP3 slip clutch
- Farm and custom hay operations looking to reduce downtime with a ready-to-install PTO shaft assembly
- Equipment setups using 1-3/8" 6-spline PTO connections on both tractor and implement sides
