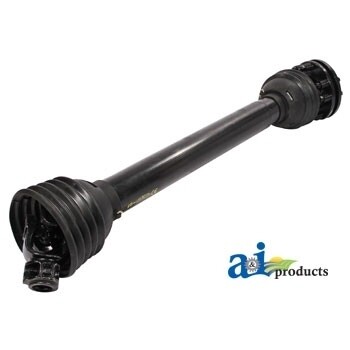

The 100 Series Pull/Tow Driveline with Friction Clutch is a heavy-duty PTO driveline built for pull-type and towed rotary cutters, including Kodiak rotary cutters. Rated as a Category 4 driveline (47 HP) and built in Size 5, it features a 7.09" friction clutch on the implement end to help protect gearboxes and driveline components from sudden shock loads.
With a 35" minimum and 52" maximum center-to-center operating range, this driveline is designed to fit common cutter configurations. As with many PTO drivelines, it may require cutting to proper length to ensure safe tube overlap and to prevent bottoming out through the full range of motion.
Country of Origin: Varies by production batch
Key Features / Specifications
- Series: 100 Series
- Type: Pull/Towed driveline with friction clutch
- Category rating: Category 4 (47 HP)
- Size: 5
- Replaces: 88609
- Tractor end: 1-3/8" – 6 spline
- Implement end: 1-3/8" – 6 spline FF1 friction clutch
- Clutch diameter: 7.09"
Length Specifications
- C-to-C minimum: 35" (885 mm)
- C-to-C maximum: 52" (1310 mm)
- Total collapsed length: 45" (1140 mm)
Fitment Notes
- Fits: Kodiak rotary cutters
- Important: It may be necessary to cut this driveline to length. Verify correct length by ensuring sufficient drive tube overlap in all working positions without the driveline bottoming out.
- 3-point hitch mowers: For 5', 6', and 7' rotary mowers used with a 3-point hitch, a longer driveline may be required (part CS64416).
Ideal For
- Pull-type or towed rotary cutters requiring a friction clutch driveline
- Kodiak rotary cutter replacements and upgrades
- Operators needing shock-load protection to help prevent driveline and gearbox damage
- Equipment setups requiring a Cat 4, 47 HP rated PTO driveline
