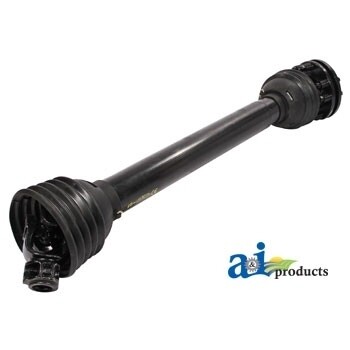

Complete Pto Shaft Assy w/7" Slip Clutch, 6-Series 54"

Complete Pto Shaft Assy w/7" Slip Clutch, 6-Series 54", 1-3/8-6 X 1-3/8-6 64HP

The A-CS64416 Complete PTO Shaft Assembly with 7" Slip Clutch is a heavy-duty driveline solution built to handle high-horsepower applications with reliable torque transfer and built-in protection. Designed as a Series 6, Category 4 (64 HP) driveline, it features a 7.87" friction slip clutch to protect equipment from shock loads and overload conditions. With 1-3/8" 6-spline connections on both ends, this shaft is ready to pair with a wide range of tractors and implements—delivering smooth power while saving your gearbox from unwanted surprises.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-CS64416
• Product Type: Complete PTO shaft assembly with slip clutch
• Series / Size: Series 100, Size 6 driveline
• Category Rating: Category 4 HD (64 HP)
• Connection Type (Tractor): 1-3/8" – 6 spline yoke
• Connection Type (Implement): 1-3/8" – 6 spline FF2 with friction clutch
• Clutch Type: 7.87" friction slip clutch for overload protection
• Minimum Length (C-to-C): 44 in. (1120 mm)
• Maximum Length (C-to-C): 67 in. (1710 mm)
• Collapsed Length: 54 in. (1365 mm)
• Application Type: 7 ft lift / 3-point hitch implements
• Adjustment: May require cutting to proper length for specific applications
• Design Note: Ensure proper overlap of drive tubes to prevent bottoming out
• Compatibility: Genuine alternative replacement for multiple OEM part numbers

Cross Reference / Replaces

• Bush Hog: 88611, A-50034237
• John Deere: PM14106654
• Case-IH: W14106654DS
• Rhino: A-8893
• A&I: A-14106654, 971-14106654
• Drive-Line: A-113-72H, A-114-84H
• Miscellaneous: CS6133E

Ideal For

• Running rotary cutters, mowers, and 3-point hitch equipment requiring heavy-duty PTO power
• Applications where overload protection is critical to prevent equipment damage
• Operators needing a reliable replacement driveline compatible with multiple brands
• Situations requiring adjustable shaft length for proper fitment
• Anyone who prefers their PTO shaft to slip when it should—rather than break something expensive when it shouldn’t
