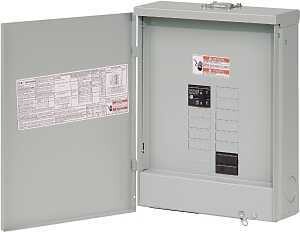

Cutler Hammer BRP10B100RF Exterior Main Breaker Load Center, 100A 10-Space/20 Circuit, NEMA 3R

Cutler Hammer BRP10B100RF Exterior Main Breaker Load Center, 100A 10-Space/20 Circuit, NEMA 3R

Eaton Load Center, 120/240 V, 100 A, Number of Phases: 1, Number of Spaces: 10, Number of Poles: 20, Number of Circuits: 20, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Cable Size: #4-1/0 AWG, Bus Bar Material: Aluminum, Bus Bar Rating: 100 A, Enclosure Type: NEMA 3R, Flush, Surface Mounting

Descripción español:

CENTRO DE CARGA P/DISYUNTOR PRINCIPAL 10 ESP 100 A

Product Details

Breaker/ Load Center Type:

Main Breaker Plug-On Neutral

Bus Bar Material:

Aluminum

Bus Bar Rating:

100 A

Cable Size:

4-1/0 AWG

Current Rating:

100 A

Enclosure Type:

NEMA 3R

Mounting Type:

Flush Surface

Number of Circuits:

20

Number of Phases:

1

Number of Poles:

20

Number Of Spaces:

10

Voltage Rating:

120/240 V

Features

Optimized knockouts - optimized knockout locations for additional access, easier to remove

Smooth case edges - providing a more professional look and feel

2/0 lug- easily removable and can be installed in any location on the neutral bar

Inboard neutral - increases gutter space to allow for professional installation of conductors

Common drive types (BR)- minimizes number of tools required for installation as the neutral bar and BR breaker screws will share a common drive type

Backed out neutral screws - allows for quick connection of neutral and ground conductors

Plug-on neutral (PON) - eliminates the pigtail connection providing time and labor savings

Embossed circuit numbers-durable circuit numbering with added marking for twin breakers

Keyhole hanging feature - ease of cover installation

Rigid cover spine provides strength when twist outs are removed
