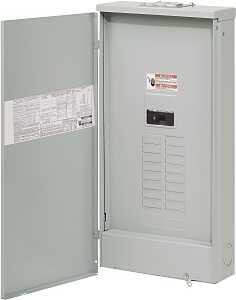

Cutler Hammer Exterior Load Center, 200A 20/40

Cutler Hammer BRP20B200R Exterior Main Breaker 200A Load Center, 20 Space/40 Circuit

The Cutler Hammer BRP20B200R Load Center is a rugged, outdoor-ready power distribution solution built to handle 200A service with room to grow. Designed with a rainproof NEMA 3R enclosure and 20 spaces / 40 circuits, it’s ready for residential service entrances or sub-feed applications where durability and flexibility matter. The plug-on neutral design speeds up installation, while the tin-plated aluminum bus bar and 25 kA interrupt rating bring dependable performance to the table—because your panel should be the most stable thing in your electrical system.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: BRP20B200R
• Brand: Cutler Hammer (Eaton)
• Product Type: Exterior main breaker load center
• Amperage Rating: 200A
• Voltage Rating: 120/240V AC
• Phase: Single-phase, 3-wire
• Spaces / Circuits: 20 spaces / 40 circuits
• Breaker Type: Main breaker (BW), 25,000 AIC interrupt rating
• Bus Bar Material: Tin-plated aluminum
• Bus Rating: 200A
• Wire Range: #2 – 300 kcmil
• Enclosure Type: NEMA 3R (rainproof, outdoor rated)
• Mounting: Flush or surface mount
• Neutral Design: Plug-on neutral with twin neutral bars and cross-bus connection
• Bonding: Insulated/bondable split neutral
• Orientation: Capable for top or bottom feed (rotates 180°) with NEC-compliant horizontal handle operation
• Finish: Galvanized steel with electrostatic powder-coated, baked urethane paint
• Dimensions: 14-5/16 in W x 29-1/8 in H x 5-3/16 in D
• Certifications: UL Listed (File E52977)
• Includes: Cover (hubs and ground bar kit sold separately)

Ideal For

• Residential service entrances requiring a durable 200A outdoor panel
• Installations needing expandability with 20 spaces / 40 circuits
• Electricians who want faster installs with plug-on neutral design
• Outdoor applications where rainproof (NEMA 3R) protection is essential
• Anyone who prefers their electrical panel to be organized, reliable, and not full of surprises later
