Cutler Hammer Non-Fusible Single Throw Safety Switch, 100A

Cutler Hammer Non-Fusible Single Throw Safety Switch, 100A

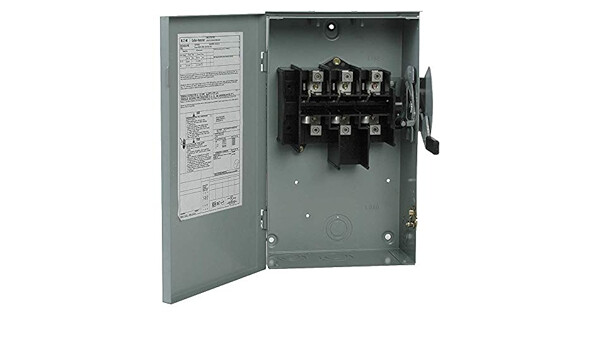

The DG323UGB Cutler-Hammer® / Eaton General Duty Non-Fusible Single-Throw Safety Switch (100A, 240V, NEMA 1) is an indoor disconnect designed for reliable manual shutoff and isolation of circuits in commercial, agricultural, and light industrial applications. With a painted steel NEMA 1 enclosure and a three-pole, three-wire configuration, it provides straightforward switching for 240V systems; note it is not approved for service entrance use unless a neutral kit is installed.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Catalog Number: DG323UGB
• Brand / Series: Cutler-Hammer® / Eaton General Duty
• Product Type: General duty safety switch / disconnect
• Switch Type: Non-fusible, single-throw
• Amperage Rating: 100A
• Voltage Rating: 240V
• Poles / Wires: Three-pole, three-wire
• Enclosure: NEMA 1 (Indoor)
• Enclosure Material: Painted steel
• Compliance: NEC 230.62(C) compliant barrier
• Certification: UL Listed
• Catalog Note: Not approved for service entrance unless a neutral kit is installed
• Warranty: Eaton Selling Policy 25-000 — 1 year from installation or 18 months from shipment (whichever occurs first)

Dimensions / Measurements

• Length / Depth: 7.38 in
• Height: 18.81 in
• Width: 9.13 in
• Weight: 12 lb

Ideal For

• Indoor installations needing a general duty 240V disconnect
• Equipment, branch circuits, and systems requiring manual isolation for service
• Applications where a non-fusible switch is preferred (over fused)
• Facilities needing a UL Listed switch in a NEMA 1 painted steel enclosure
