Cutler Hammer Non-Fusible Single Throw Safety Switch, 100A

Cutler Hammer Non-Fusible Single Throw Safety Switch, 100A

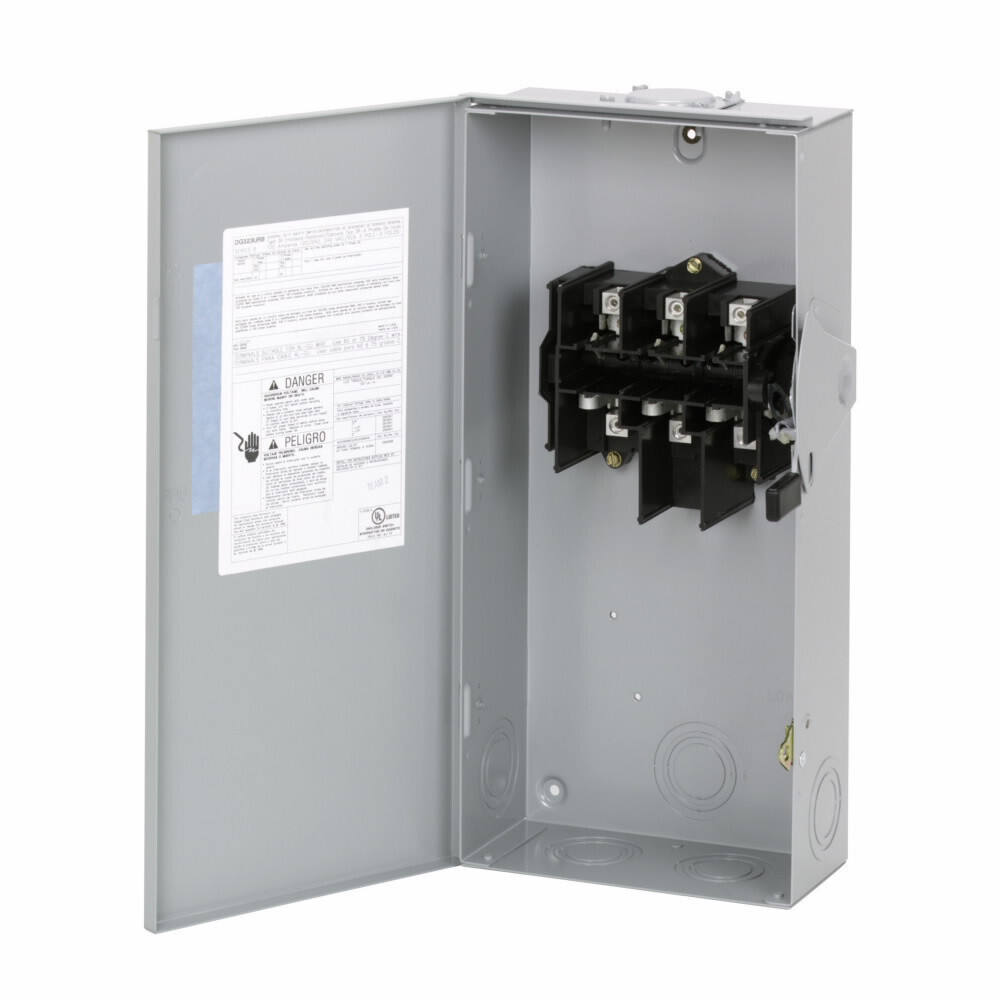

The Eaton / Cutler-Hammer DG323URB General Duty Safety Switch is a rugged, non-fusible, single-throw disconnect designed to provide reliable equipment isolation for 240V applications. Housed in a NEMA 3R outdoor-rated enclosure made from painted galvanized steel, it’s built to handle demanding environments while meeting key compliance requirements, including an NEC 230.62(C) compliant barrier. This 100A, three-pole safety switch is a dependable choice for general duty disconnect needs—note that it is not approved for service entrance use unless a neutral kit is installed.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand: Eaton / Cutler-Hammer
• Catalog number: DG323URB
• Product category: General duty safety switch
• Type: Non-fusible, single-throw
• Amperage rating: 100A
• Voltage rating: 240V
• Poles: Three-pole
• Number of wires: 3
• Fuse configuration: Non-fusible
• Enclosure rating: NEMA 3R
• Enclosure material: Painted galvanized steel
• Compliance: NEC 230.62(C) compliant barrier
• Certifications: UL Listed
• Catalog note: Not approved for service entrance unless a neutral kit is installed
• Dimensions: 19.25" H x 9.13" W x 7.38" D
• Weight: 12 lb
• UPC: 782113144375
• Warranty: 1 year from installation or 18 months from shipment (whichever occurs first)

Ideal For

• General duty disconnect applications requiring 100A capacity
• Outdoor installations needing a NEMA 3R weather-rated enclosure
• Equipment isolation for motors, HVAC, pumps, and similar loads
• Facilities needing a three-pole non-fusible safety switch at 240V
• Projects requiring UL-listed disconnect hardware with NEC-compliant barrier protection
