Cylinder Rod Seal, 2"X2-1/2"X3/8"

Cylinder Rod Seal, 2"X2-1/2"X3/8"

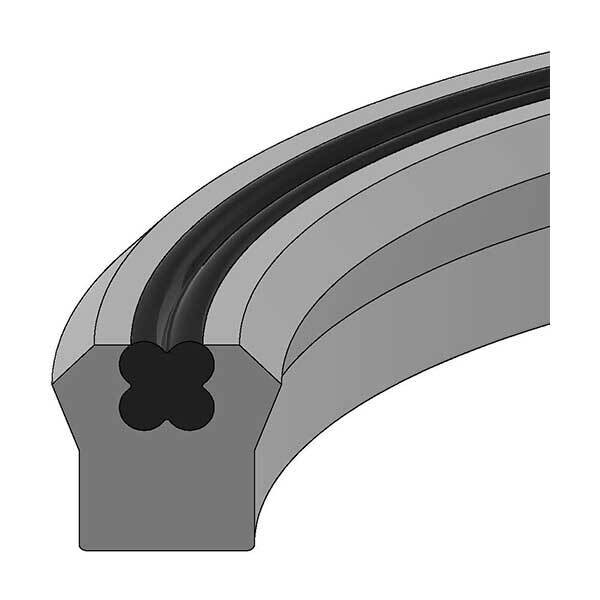

The U25-2.00-37B Cylinder Rod Seal is a Style 800 polyurethane U-seal engineered for high-performance hydraulic applications. Molded from tough 95A abrasion-resistant urethane, this seal features a four-lobed expander ring that energizes the sealing lips—even at zero pressure—to help prevent “weeping” when the system is idle. Built to handle demanding pressures and temperature swings, it keeps hydraulic systems sealed tight and operating efficiently.

Country of Origin
Varies by production batch

Key Features / Specifications

• Product / Part Number: U25-2.00-37B
• Alternate MFG Numbers: 250-02.000-375BUR95, 25002000Q375B, P25-2.00-37B, M53250, U25-2.00-37B-(ROT-SINGLE-POP), 391-1982-899, 3013877, SU-00050, 7R546020, 28X37X6TC, 81-0080, UI71200035, SL-SS-116, SL-SS-148, MARION 1031, 319585, 2530040, 10EUS/I200250
• Seal Type: Style 800 U-Cup / Cylinder Rod Seal
• Material: 95A Polyurethane (Urethane)
• Rod Diameter (Nominal ID): 2.000 in
• Outside Diameter (Nominal OD): 2-1/2 in (2.500 in)
• Nominal Height: 3/8 in (0.375 in)
• Cross Section: 1/4 in
• Groove Diameter (H): 2.000 in
• Groove Width (D): 0.413 in
• Housing Diameter (G): 2.500 in
• Piston Diameter (I): 2.499 in
• Throat Diameter (F): 2.001 in
• Temperature Range: -65°F to +220°F
• Pressure Range: 0 to 5,000 PSI
• Maximum Speed: 3 ft/sec
• Weight: 0.0278 lb
• Design Feature: Four-lobed expander ring energizes sealing lips, even at zero pressure

Ideal For

• Hydraulic cylinders requiring high-pressure rod sealing
• Applications needing abrasion-resistant polyurethane seals
• Equipment exposed to wide temperature ranges
• Preventing leakage or “weeping” in idle hydraulic systems
• Agricultural, industrial, and heavy equipment hydraulic repairs where sealing performance can’t be left to chance
