Cylinder Seal

Cylinder Seal

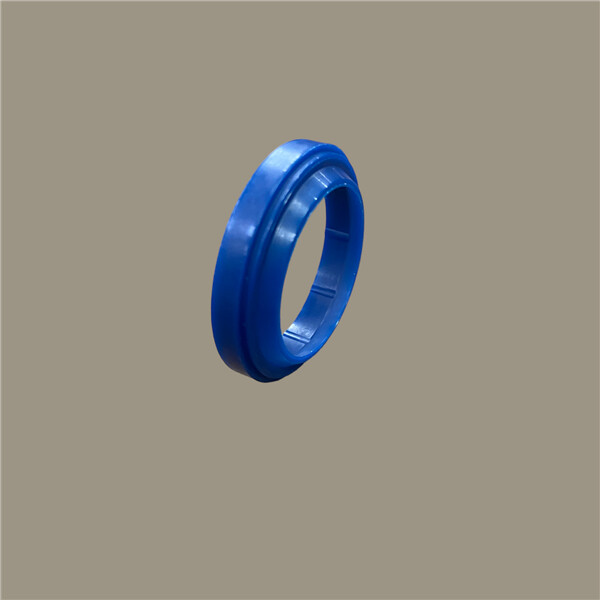

The MSWS-25X33X4 Cylinder Seal is a high-quality light-duty wiper ring designed for cylindrical sealing applications. Featuring a double stepped shoulder, it ensures a tight fit in the gland throat to prevent contamination from entering the system. Made from urethane, this wiper ring offers excellent durability and abrasion resistance, while being capable of handling temperatures from -22° to +212°F. The 25mm ID and 33mm OD make it suitable for use in hydraulic and pneumatic systems with these specific sizes.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: MSWS-25X33X4
• Material: Urethane for durability and resistance to wear
• Temperature Range: -22° to +212°F, suitable for a wide range of environments
• Speed Rating: 3 ft/sec for reliable operation in high-speed systems
• Nominal Dimensions:
  • ID (A): 25mm (1.00 inch)
  • OD (B): 33mm (1.30 inches)
  • Height (C): 4mm (0.16 inches)
• Rod Size: 25mm
• Housing Diameter: 33mm

Ideal For

• Hydraulic and pneumatic systems requiring a wiper seal for rod protection
• Light-duty applications needing a durable and reliable urethane seal
• Systems exposed to contaminants, where a tight fit is needed to prevent dirt and debris
• Users seeking an effective, long-lasting solution to protect cylinders from wear

This MSWS-25X33X4 wiper ring offers excellent performance in light-duty sealing, making it an ideal choice for keeping your hydraulic systems clean and efficient!
