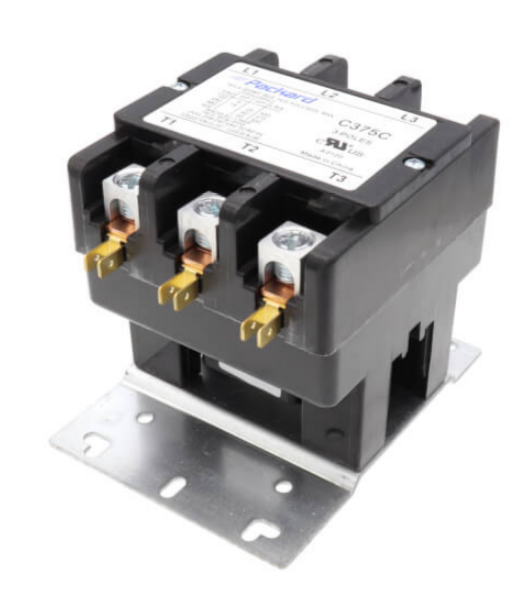

Definite Purpose Contactor, 3P 75A 240V Coil

The C375C Definite Purpose Contactor (3-pole, 75A, 240V coil) is a heavy-duty contactor designed for reliable switching of motors and loads in HVAC, agricultural, and industrial control applications. With 3 normally-open poles, a 208–240V AC (60 Hz) / 220V AC (50 Hz) control coil, and ratings up to 600V AC, it’s built to handle demanding motor loads and high inrush conditions.

Country of Origin: CN

Key Features / Specifications

• Model / Part Number: C375C
• Product Type: Definite purpose contactor
• Line Rated Current: 75A
• Poles / Contacts: 3P, 3 NO (normally open)
• Operational Voltage (Ue): 600V AC
• Control Coil Voltage: 208–240V AC 60 Hz / 220V AC 50 Hz
• Phase: 3-phase
• Motor Ratings:
  • 5 hp @ 115V AC, 1Ø
  • 15 hp @ 230V AC, 1Ø
  • 25 hp @ 230V AC, 3Ø
  • 40 hp @ 460V AC, 3Ø
  • 40 hp @ 575V AC, 3Ø
• Locked Rotor Rated Current:
  • 450A @ 277V AC
  • 375A @ 460V AC
  • 300A @ 575V AC
• Connections: Box lugs and quick-connect terminals
• Certifications: UL Listed, CSA, CE
• GTIN: 00785901118374

• Package Qty: 1

Dimensions / Measurements

• Package Weight: 3.66 lb

Ideal For

• Switching 3-phase motors up to the listed HP ratings
• HVAC and refrigeration equipment needing a 240V-class coil contactor
• Control panels requiring a definite purpose contactor with UL/CSA approvals
• Applications with high inrush where strong locked-rotor ratings matter
