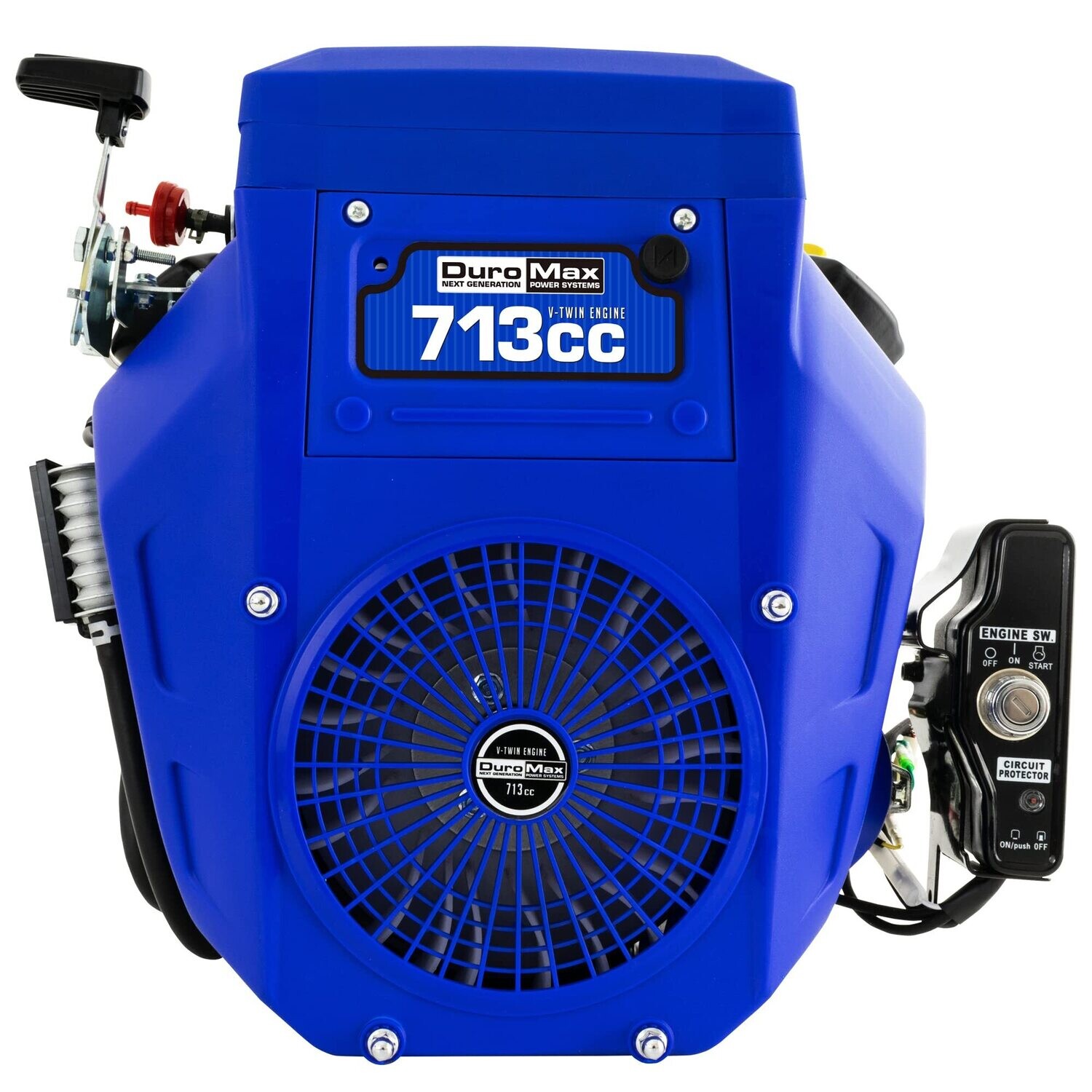

DuroMax XP23HPE 713cc V-Twin Electric Start Engine

DuroMax XP23HPE 713cc V-Twin Electric Start Engine

The DuroMax XP23HPE is the original heavy-hitter in DuroMax’s premium V-Twin lineup—a 713cc 4-stroke OHV horizontal shaft engine built for projects that need serious power without messing around. It’s a strong fit for go karts, ATVs, boats, and other heavy-duty builds, and it adds convenience with key-switch electric start (because yanking a recoil cord on a big engine is a great workout… but not always the one you want). It’s also EPA and CARB approved for mandated-use compliance—so it can be both powerful and polite.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: XP23HPE
• Brand / Manufacturer: DuroMax Power Equipment
• Product Type: 713cc V-Twin horizontal shaft gas engine (electric start)
• Engine Type: 4-stroke
• Valve Type: OHV
• Engine Cooling Type: Forced air
• Engine Configuration: V-Twin
• Displacement: 713cc
• Bore / Stroke: 80mm / 71mm
• Compression Ratio: 8.5:1
• Max Output / Speed: 4000 RPM
• Max Torque: 31.72 ft-lbs (43 N·m) @ 2500 RPM
• Shaft Orientation: Horizontal
• Shaft Size: 1" diameter, 3.01" long, 1/4" x 2" keyway
• Shaft End: 3/8" size 24 UNF - 2B
• Shaft Rotation: Counter clockwise
• Center of Shaft to Base: 5.29"
• Fuel Type: Gasoline
• Fuel Delivery System: Carburetor
• Starting Type: Key switch
• Electric Start: Yes
• Cast Iron Sleeve: Yes
• Bearing Type: Stainless steel needle bearings
• Oil Cooling Type: Pressure and splash
• Oil Capacity: 54.1 fl oz
• Recommended Oil: 10W-30
• Recommended Oil Types: Blended, conventional, or synthetic
• EPA Certified: Yes
• CARB Certified: Yes
• 50 State Emissions: Yes
• Dimensions: 19.3" L x 18.3" W x 14" H
• Package Dimensions: 21.5" L x 21.1" W x 19.1" H
• Weight: 103.6 lbs
• UPC: 811640016067
• Warranty: 3 year
• What’s in the Box: XP23HPE engine, owner’s manual

Ideal For

• High-demand builds like go karts, ATVs, boats, and custom heavy-duty equipment
• Applications needing a horizontal shaft with a 1" output and keyed drive
• Users who want easier starts with a key-switch electric start
• Projects that benefit from a robust V-Twin platform and pressure/splash oiling
• Anyone who wants big-engine power without having to “earn it” with a recoil cord every time
