Easy-Splice Wrap-Around Gel Direct Burial Splice

Easy-Splice Wrap-Around Gel Direct Burial Splice Kit, 4/0-14 AWG X 10" Long

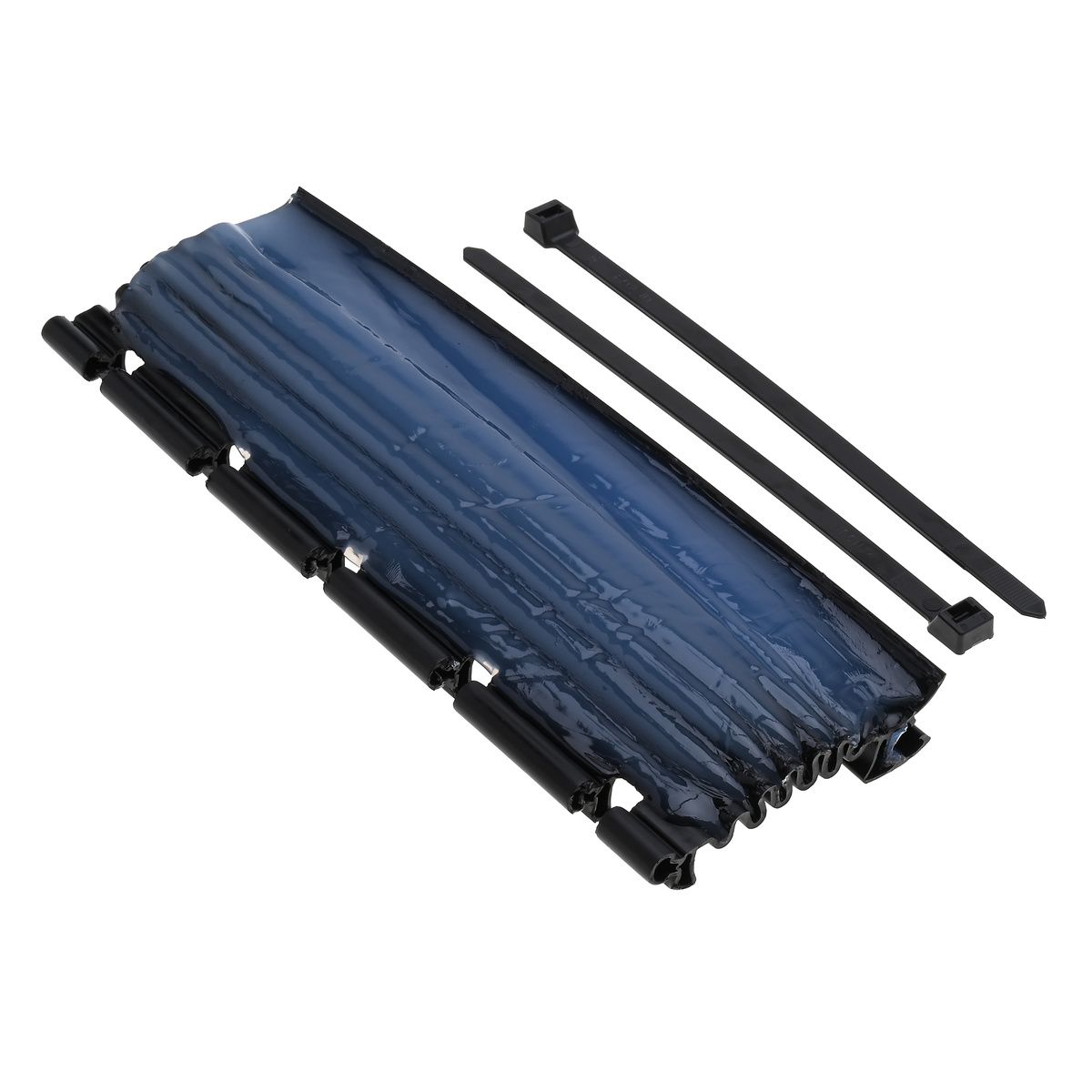

The WAGS-4/0-10 Easy-Splice Wrap-Around Gel Direct Burial Splice Kit (10") is a wrap-around gel splice closure sleeve designed to insulate and seal underground electrical splices without heat or mixing compounds. The sleeve wraps around the splice and snaps closed, while the sealant gel seals on contact to help create a water-resistant enclosure for direct burial and underground vault applications.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: WAGS-4/0-10
• Product Type: Wrap-around gel splice closure sleeve / direct burial splice kit
• Conductor Range: #14 – 4/0 AWG
• Sleeve Length: 10 in
• Voltage Rating: Up to 1,000V
• Cable Type: Class A/B
• Cable OD Range: 0.15 – 0.70 in
• Maximum Connector Opening: 7 in
• Minimum Seal Length: 1-1/2 in per side
• Number of Cables: 2
• Operating Temperature: -40 to 90°C
• Color: Black

Ideal For

• Direct burial splices needing a gel-sealed closure without heat-shrink or resin systems
• Underground vault, handhole, and manhole applications where quick wrap-and-snap installation helps speed repairs
• Cable splice protection and jacket repair within the stated AWG and cable OD ranges
