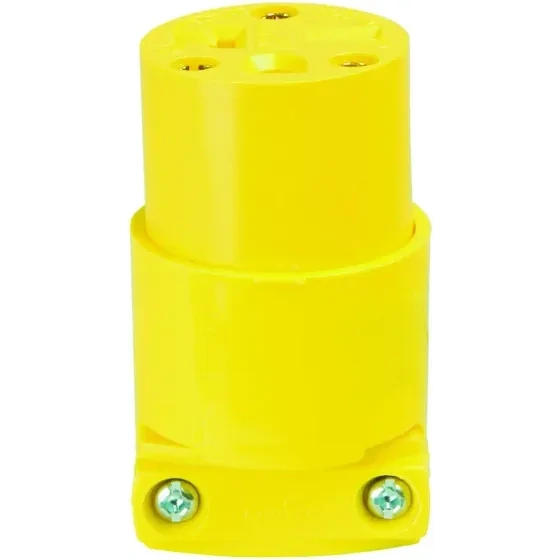

Eaton 4229 Yellow Cord End, 20A 250V
SKU 605-4753
$15.59
In stock: 9 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Eaton 4229 Yellow Cord End, 20A 250V
Product Details
UPC: 032664333002
Brand: Eaton Wiring Products
Weight: 0.16 lbs
Eaton 4229 Yellow Cord End, 20A 250V
Commercial-grade, thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out-ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.
Commercial-grade, thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out-ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.
Description du français:
CONNECTEUR JAUNE 20 A 250 V
CONNECTEUR JAUNE 20 A 250 V
Descripción español:
CONECTOR DE 20 A 250 V AMARILLO
CONECTOR DE 20 A 250 V AMARILLO

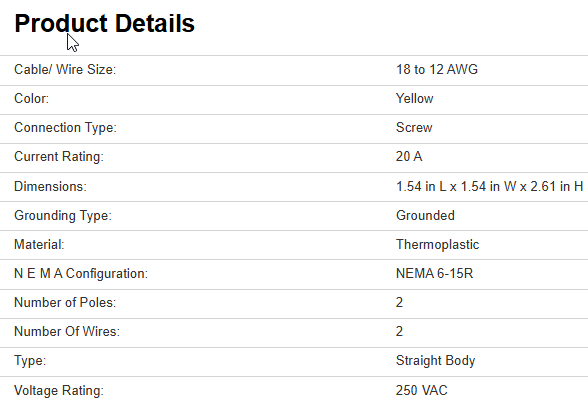

Product Details
Cable/ Wire Size:
18 to 12 AWG
Color:
Yellow
Connection Type:
Screw
Current Rating:
20 A
Dimensions:
1.54 in L x 1.54 in W x 2.61 in H
Grounding Type:
Grounded
Material:
Thermoplastic
N E M A Configuration:
NEMA 6-15R
Number of Poles:
2
Number Of Wires:
2
Type:
Straight
Voltage Rating:
250 VAC
Cable/ Wire Size:
18 to 12 AWG
Color:
Yellow
Connection Type:
Screw
Current Rating:
20 A
Dimensions:
1.54 in L x 1.54 in W x 2.61 in H
Grounding Type:
Grounded
Material:
Thermoplastic
N E M A Configuration:
NEMA 6-15R
Number of Poles:
2
Number Of Wires:
2
Type:
Straight
Voltage Rating:
250 VAC
Features
Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
Terminal screws backed out ready for wiring
Terminals in individual chambers to positively insulate conductors
Terminal screw clamps are designed to contain wire and prevent binding
Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
