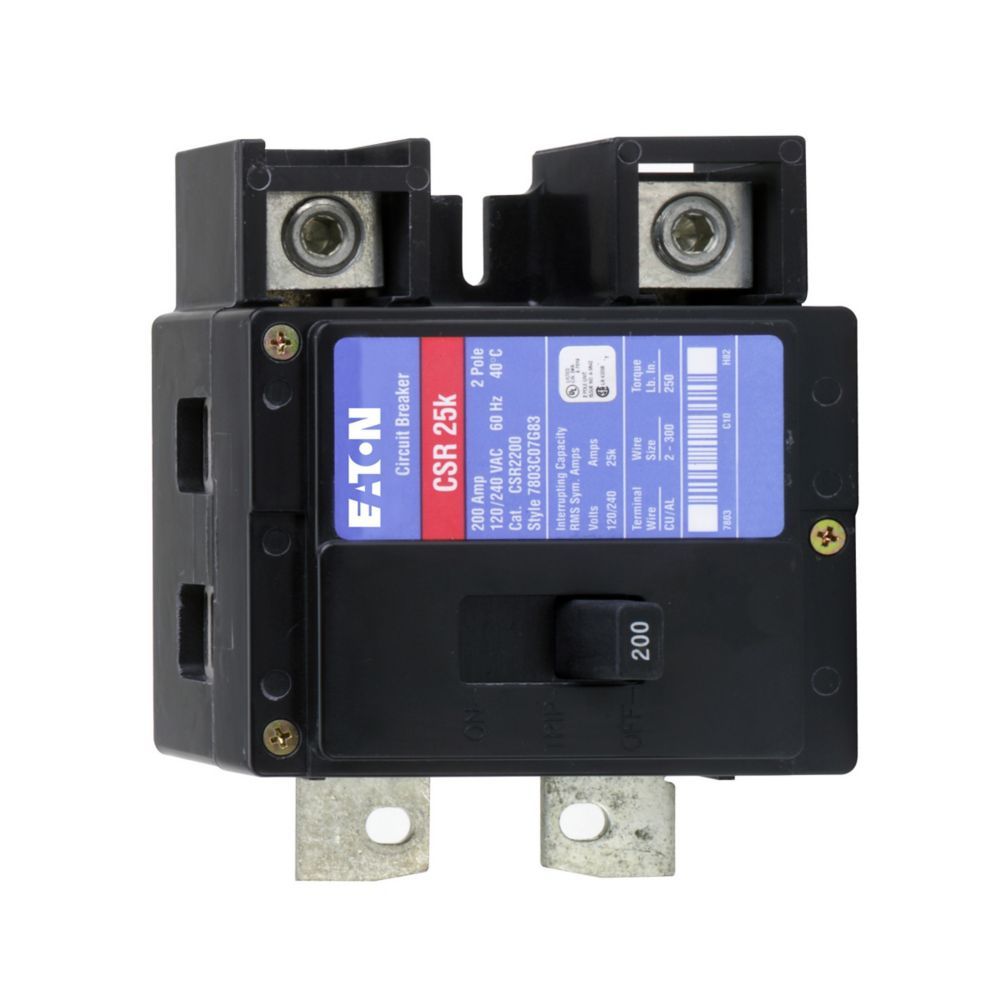

Eaton Cutler Hammer Bolt-In Main Breaker, 200A

Eaton Cutler Hammer Bolt-In Main Breaker, 200A

The Eaton Cutler Hammer CSR2200N Bolt-In Main Breaker is a 200-amp main circuit breaker designed for use in Type ECC unit enclosures. Featuring a two-pole configuration, 120/240V rating, and a robust 25 kAIC interrupt capacity, this breaker provides dependable overcurrent protection for residential and light commercial electrical systems. Built to Eaton's CH-series standards and certified to UL 489, the CSR2200N delivers reliable performance, easy bolt-in installation, and compatibility with a wide range of conductor sizes. It's the kind of component you hope never has to prove its worth—but you'll be glad it's there when it does.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: CSR2200N
• Brand: Eaton Cutler Hammer
• Product Type: Bolt-In Main Circuit Breaker
• Series: CSR
• Amperage Rating: 200 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2-Pole
• Phase: Single-Phase
• Interrupt Rating: 25 kAIC
• Main Circuit Breaker Type: CH
• Frame Type: CSR
• Wire Size Range: #2 AWG to 300 kcmil
• Application: For use in Type ECC Unit Enclosures
• Certification: UL 489 Listed
• Mounting Style: Bolt-In
• Dimensions: 5.3" L x 4.2" W x 3.52" H
• Weight: 2.5 lbs
• Warranty: Limited Lifetime Warranty
• Protection: Provides overcurrent and short-circuit protection for service entrance and distribution equipment

Ideal For

• Replacing or upgrading main breakers in compatible Eaton ECC enclosures
• Residential service entrance applications
• Single-phase electrical distribution systems
• Light commercial electrical installations
• Electricians and contractors needing a dependable 200A bolt-in main breaker
• Anyone who appreciates electrical protection that works quietly in the background—until the moment it becomes the most important component in the panel.
