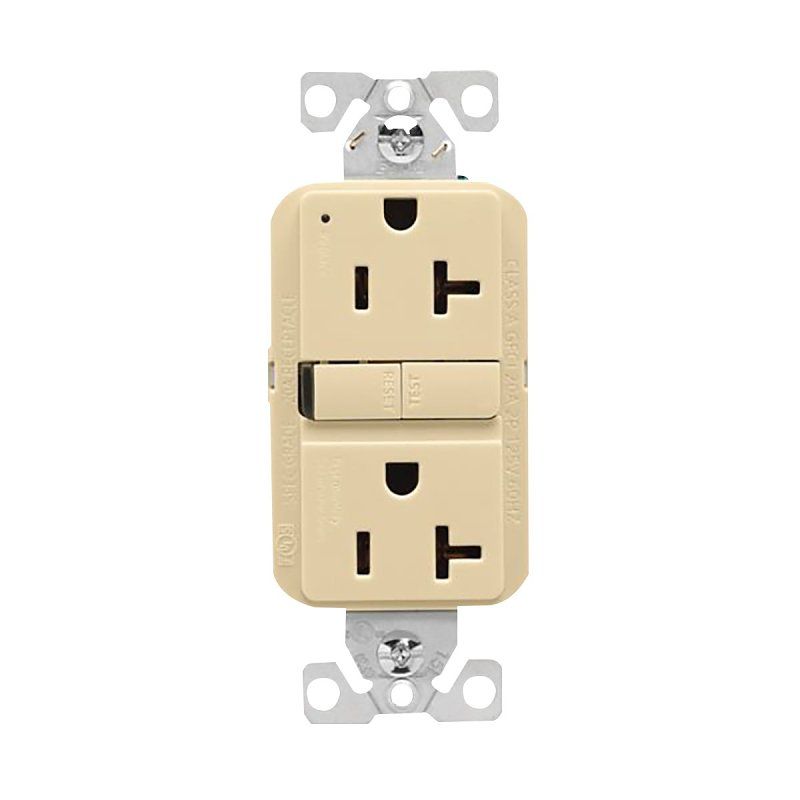

Eaton GF20V-L Ivory GFCI Duplex Receptacle, 20A, 125V

Eaton GF20V-L Ivory GFCI Duplex Receptacle, 20A, 125V

Eaton Self-Test GFCI Receptacle, 125 V, 20 A, Number of Poles: 2, Short Circuit Current Rating: 10 kA, Grounding Type: Automatic, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: NEMA 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/Steel/Thermoplastic/PVC, Ivory, Dimensions: 4.19 in H x 1.69 in W

Product Details

Color:

Ivory

Current Rating:

20 A

Dimensions:

4.19 in H x 1.69 in W

Grounding Type:

Automatic

Material:

Polycarbonate/Steel/Thermoplastic/PVC

Nema Rating:

NEMA 5-20R

Number of Poles:

2

Number Of Wires:

3

Operating Temperature:

-35 to 66 deg C

Short Circuit Current Rating:

10 kA

Voltage Rating:

125 V

Wire Size:

14 to 10 AWG

Wiring Type:

Back Side

Features

Slimmer design for easy installation, leaving more room for wires in the box

Automatically self-tests periodically to ensure GFCI protection

GFCIs incorporate lock out functionality to protect against mis-wired line load connections and GFCI circuitry damage

Wider button wells for easy test and reset

Intuitive LED status indicators for trip and end of life states

Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons

Meets and exceeds 10 kA short-circuit testing and underwriters laboratories

Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

External back wire clamps provide visual confirmation of secure termination

Line side terminals are backed out and staked for fast installation
