Electric Distribution Cable, 4/0-4/0-4/0

Southwire URD Electric Distribution Cable, 4/0-4/0-4/0 200Amp

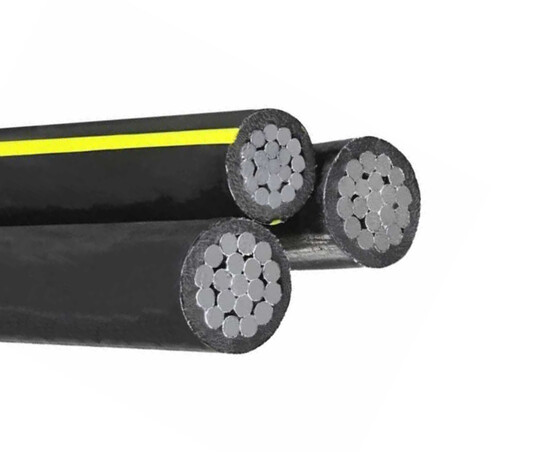

Consists of two cross-linked polyethylene insulated phase conductors triplexed with a yellow-striped, cross-linked polyethylene insulated neutral. High quality heat and moisture-resistant cross-linked polyethylene is rated 75 deg C for wet and 90 deg C for dry locations. 240 A maximum in duct or 315 A in direct earth burial applications with a maximum conductor temperature of 90 deg C, 600 V. 4/0 - 4/0 - 4/0 URD x 500' spool. UL listed.

Descripción español:

CABLE D/DISTRIB URD ENT DIR A TIERRA 4/0-4/0-4/0 X 152,40 M

Product Details

Conductor Insulation:

Polyethylene

Conductor Material:

Aluminum

Current Rating:

315 A Direct Burial 240 A in Ducts

Length:

500 in

Number of Conductors:

3

Operating Temperature:

90 deg C

Sheath Color:

Yellow

Sheath Diameter:

1421 mil

Strands per Conductor:

18 Phase 18 Neutral

Type:

Monmouth Underground

Voltage Rating:

600 V

Wire Size:

4/0 AWG

Features

Conductors are stranded, compressed 1350-H19, H16 or H26 aluminum, insulated with vulcanized interlinked polyethylene (VIP 1), Southwire's cross-linked polyethylene

Neutrals are triple yellow extruded stripe

Cables with "YES" neutrals have sequential footage markers

Conductors are durably surface printed for identification

Two-phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration

Conductors are also available paralleled
