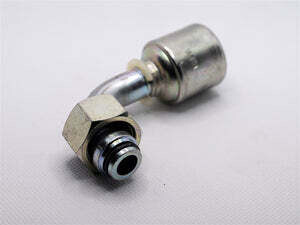

Female British Parallel Pipe Fitting

The 4G-4FBSPORSX90 Hydraulic Fitting is a 90° female British Parallel Pipe (BSPP) MegaCrimp® coupling built for a secure, leak-resistant crimp connection in hydraulic hose assemblies. Its patented internal “C” insert helps form a concentric seal by evenly distributing crimping forces, while accommodating different hose constructions and wall thicknesses—so one coupling size can cover more applications (and keep your fittings drawer from turning into chaos).

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 4G-4FBSPORSX90
• Product Type: Hydraulic MegaCrimp® coupling / fitting
• Fitting Style: Female British Parallel Pipe (BSPP) 90°
• Hose ID Compatibility: 1/4 in
• Fitting Nominal Size: 1/4 in
• Thread Size: 1/4"-19 BSPP
• Thread Pitch: 19
• Length: 2.07 in
• Nut Hex Size: 19 mm
• Cutoff Length: 1.04 in
• Drop Length: 0.93 in
• Seal / Design Feature: Patented internal “C” insert for even crimp-force distribution and a concentric seal
• Inventory Benefit: One size can accommodate multiple hose constructions and wall thicknesses (including one- and two-wire hoses)

Ideal For

• Hydraulic hose assemblies requiring a 90° female BSPP connection
• Applications where a leak-resistant crimp seal is critical
• Tight routing situations where a 90° fitting improves alignment and reduces hose stress
• Shops aiming to simplify coupling inventory across multiple hose builds
