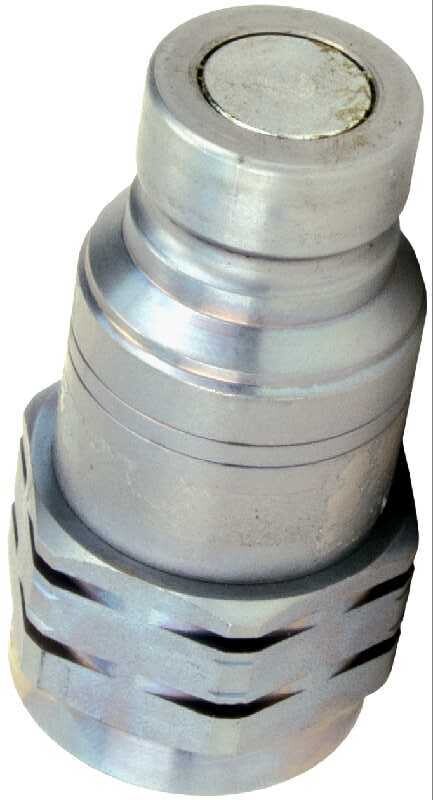

Flat Face Male Hydraulic Coupler, 1/2"X1-1/16"ORB

The FF08S1116M Flat Face Male Hydraulic Coupler is a 1/2" flat face quick-connect coupler with 1-1/16"-12 ORB threads designed for clean, leak-free hydraulic connections in demanding equipment applications. Its flat-face design helps prevent fluid loss during disconnects and reduces the inclusion of air and contaminants during connection, while a safety locking sleeve helps prevent accidental disconnection—making it a strong fit for high-pressure, high-pulse hydraulic systems.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: FF08S1116M
• Product Type: Flat face male hydraulic coupler
• Coupler Size: 1/2 in
• Thread Type / Size: 1-1/16"-12 ORB
• Locking Feature: Safety locking sleeve to help prevent accidental disconnection
• Connection Cleanliness: Flat faces wipe clean easily
• Contamination Control: Minimal inclusion of air and contaminants during connection
• Leak Prevention: Flat face design helps prevent fluid loss during disconnection
• Flow: Bidirectional flow
• Construction Material: Carbon steel
• Finish: Zinc nickel plating (1200 hours no red rust in salt spray tests, as provided)
• Seal Material: Nitrile seals (Viton seals available, as provided)
• Accessories (as provided): Dust caps available for the HQ Series
• Alternate Material Option (as provided): Available in AISI 316 stainless steel (HSS Series)

Ideal For

• High-pressure pulse hydraulic applications needing a flat-face quick connect
• Equipment requiring leak-free connections and cleaner disconnects
• Construction plant and mobile equipment hydraulic circuits
• Agricultural equipment and general industrial hydraulic systems
• Skid steer loaders where flat face couplers reduce contamination and spillage
