Flat Idler Pulley, 3/8"Bore X 2"OD

Flat Idler Pulley, 3/8"Bore X 2"OD

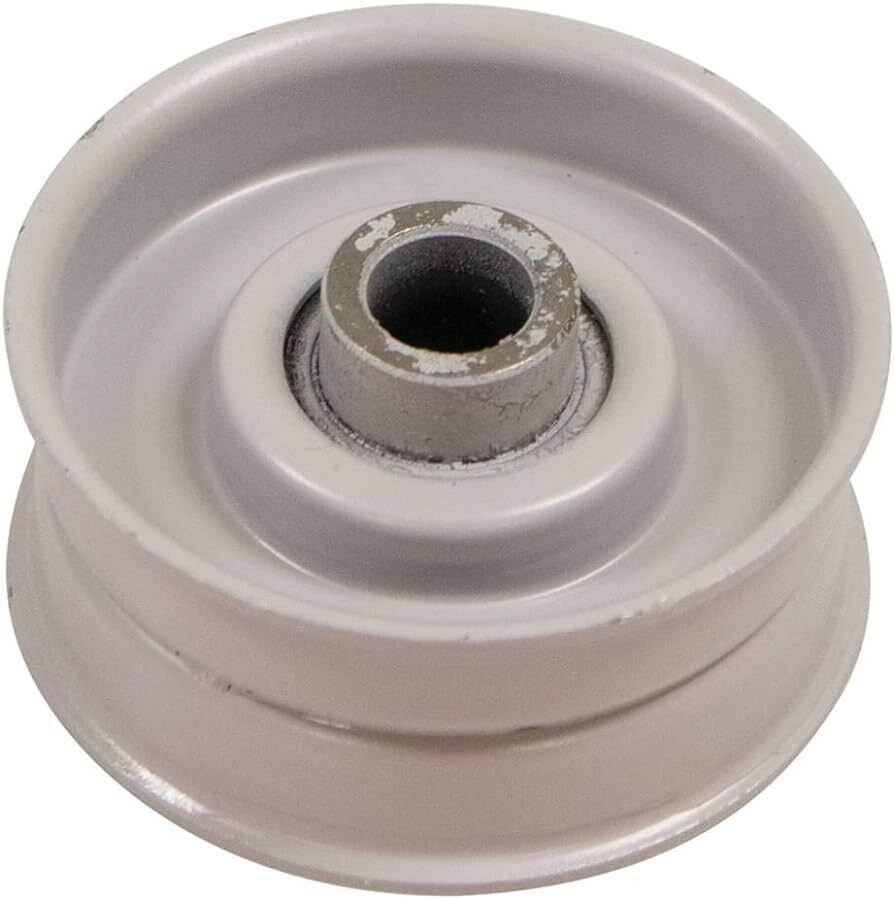

The 280-016 Flat Idler Pulley is a compact 2" OD metal flat idler with a 3/8" bore, built to keep belt systems tracking smoothly in tight spaces. It features a double row of bearings with double sealed sides for added durability and protection, and it’s made by an OEM supplier—so it’s the kind of small part that quietly prevents big belt drama.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 280-016
• Description: Stens Flat Idler
• Product Type: Flat idler pulley
• Material: Metal
• Outside Diameter (OD): 2 in
• Bore / ID: 3/8 in
• Bearing Design: Double row of bearings with double sealed sides
• Made By: An OEM supplier
• Note: Color may vary
• Fits Models: Western Plow Pro Flo 1 Tailgate Spreader
• Dimensions (per drawing letters):
  • A: 2 in
  • B: 1-7/8 in
  • C: 3/8 in
  • D: 3/4 in
  • E: 1/2 in
  • F: 11/32 in
  • H: 1/16 in
  • Height: 7/8 in
  • V: 7/8 in
• Replaces / Interchanges (OEM):
  • Snapper: 1716615SM (also 1716615, 3-0948, 7010948)
  • Allis Chalmers: 118414, 2029824
  • AYP: 75673, 76557, 9178
  • FMC: 172-9440
  • Lawn-Boy: 607978, 740890
  • MTD: 1909266, 756-0111, 756-0199, 756-0370, CA-50793, GW-1909266, IH-820884-C1
  • Murray: 1502120MA, 313843, 313843GS, 46993, 50793, 50793MA
  • Simplicity: 118414, 118414SM, 2118414, 2118414SM
  • Toro: 7-0056
  • Troy-Bilt: 1720936, 1729440, 1751736, GW-1751736

Ideal For

• Replacing small flat idlers where a 2" OD x 3/8" ID pulley is required
• Belt systems that benefit from sealed, double-row bearings for longer life
• Equipment cross-referencing Snapper 1716615SM and the listed OEM numbers
• Keeping things running smoothly in compact assemblies—because belts don’t like surprises
