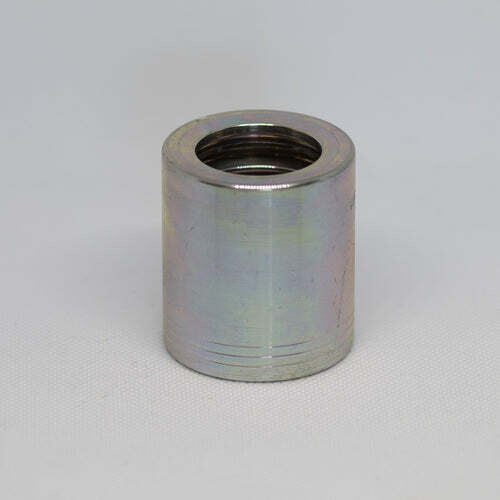

GS Hydraulic Ferrule, 1"

The 16GS1F-4 GS Hydraulic Ferrule is a Gates® GlobalSpiral ferrule designed for building extremely high-pressure, high-impulse spiral-wire hydraulic hose assemblies. Part of the GlobalSpiral system, it supports a two-piece, no-skive design that helps speed up assembly while reducing the mess and risk of contamination from skiving. Finished with TuffCoat plating for significantly improved corrosion resistance, it’s built for hard-working hydraulic systems—because hoses already have a tough job without the fittings giving up first.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS1F-4
• Brand / System: Gates® GlobalSpiral
• Product Type: Hydraulic ferrule
• Hose ID Compatibility: 1 in
• Length: 2.22 in
• Outside Diameter: 2.08 in
• Design: Two-piece, no-skive coupling system component for faster assembly
• Application Type: For high-pressure, high-impulse spiral-wire hydraulic hose applications
• Corrosion Protection: TuffCoat plating (noted as >5x better corrosion resistance than SAE ASTM B117 spec)
• Pressure Capability (System Note): GlobalSpiral thread ends are rated for working pressures up to 6,000 PSI (system reference)

Ideal For

• Building or repairing 1" ID spiral-wire hydraulic hose assemblies
• High-demand hydraulic systems with high impulse pressure cycles
• Shops wanting no-skive assembly to reduce time, labor, and contamination risk
• Equipment exposed to moisture and harsh conditions where corrosion resistance matters
• Anyone who likes hydraulic fittings that go together cleanly and consistently (and not “why is this leaking again?”)
