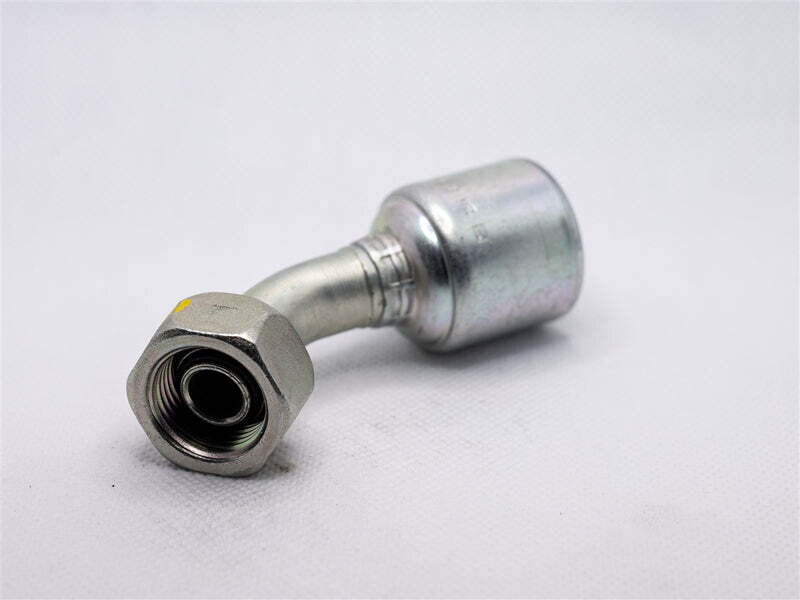

Heavy Series Metric Hydraulic Fitting

The 6G-12FDHORX45 Heavy Series Metric Hydraulic Fitting is a 45° hose fitting designed for dependable hydraulic connections in demanding applications. Built to work with MegaCrimp® coupling technology, it supports a leak-proof crimp seal using the patented “C” insert, which helps accommodate different hose constructions and wall thicknesses while distributing crimping forces evenly to form a concentric seal—simplifying inventory by allowing one size to fit multiple hose ODs across one- and two-wire hoses.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 6G-12FDHORX45
• Product Type: Heavy series metric hydraulic fitting (45°)
• Coupling System: MegaCrimp®
• Seal Design: Patented “C” insert for even crimp-force distribution and concentric seal
• Nut Hex Size: 24 mm
• Thread Size: M20 x 1.5
• Thread Pitch: 1.5
• Tube OD: 12 mm
• Hose ID: 3/8 in
• Overall Length: 2.71 in
• Cutoff Length: 1.61 in
• Drop Length: 0.74 in

Ideal For

• Hydraulic hose assemblies needing a 45° metric connection
• Applications where a consistent, leak-resistant crimp seal is required
• Shops standardizing on MegaCrimp® to simplify fitting and hose inventory
• Builds using 3/8" ID hose and 12 mm tube OD connections
