Heiniger Clamp Holder
SKU 707-890
$6.59
In stock: 1 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Heiniger Clamp Holder
Product Details
Brand: Heiniger
Weight: 0.01 lbs
Heiniger Clamp Holder

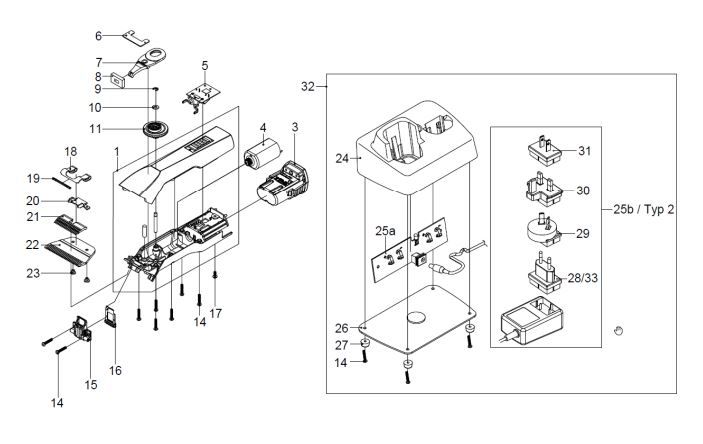

#20 in the parts diagram
| ART-NO | DESCRIPTION | TOTAL | POS | ART-NO | DESCRIPTION | TOTAL | |
| 1 | 707-370 | Motor housing set SaphirHorse complete | 1x | 25b | 707-668/EU | Power supply unit 110-240V Saphir incl. plug EU Typ 2 | 1x |
| 3 | 707-771 | Li-Ionic battery Saphir 7.4V/1.6 Ah | 1x | 25b | 707-668/AU | Power supply unit 110-240V Saphir incl. plug AU-ARG Typ 2 | 1x |
| 4 | 707-800-21 | Motor complete | 1x | 25b | 707-668/GB | Power supply unit 110-240V Saphir incl. plug GB Typ 2 | 1x |
| 5 | 707-833 | PCB clipper | 1x | 25b | 707-668/US | Power supply unit 110-240V Saphir incl. plug US Typ 2 | 1x |
| 6 | 707-855 | Rubber tap | 1x | 25b | 707-668/JP | Power supply unit 110-240V Saphir incl. plug JP Typ 2 | 1x |
| 7 | 707-847 | Turning lever | 1x | 25b | 707-668/KR | Power supply unit 110-240V Saphir incl. plug KR Typ 2 | 1x |
| 8 | 707-848 | Seal | 1x | 26 | 707-881 | Baseplate charger | 1x |
| 9 | 707-856 | Circlip DIN 6799 Ø3,2 | 1x | 27 | 707-882 | Rubber foot | 4x |
| 10 | 707-886 | Washer Ø4x0,5 | 1x | 28 | 707-740 | Plug EU Typ 2 | 1x |
| 11 | 707-800-20 | Excentric cog wheel incl. ball bearing | 1x | 29 | 707-742 | Plug AU-ARG Typ 2 | 1x |
| 14 | 707-557 | PT-screw Kombitorx KA30x16 | 12x | 30 | 707-743 | Plug GB Typ 2 | 1x |
| 15 | 707-854 | Blade support | 1x | 31 | 707-744 | Plug US-JP Typ 2 | 1x |
| 16 | 707-800-25.A | Blade interlock red | 1x | 32 | 707-822.A | Charger incl. EU/GB/US-plug | 1x |
| 17 | 707-846 | PT-screw Kombitorx KA30x8 | 1x | 32 | 707-822.AU | Charger incl. AU/ARG-plug | 1x |
| 18 | 707-891 | Pressure spring | 1x | 32 | 707-822.E | Charger without mains adaptor | 1x |
| 19 | 707-892 | Blade guidance | 1x | 33 | 707-295 | Plug KR Typ 2 | 1x |
| 20 | 707-890 | Clamp holder | 1x | ||||
| 21 | not available | Top blade | 1x | ||||
| 22 | not available | Bottom blade | 1x | ||||
| 23 | 707-893-A | Screw UNC 6-32 | 2x | ||||
| 24 | 707-875 | Upper housing to charger Heiniger | 1x | ||||
| 25a | 707-827 | PCB charger | 1x | 722-256 | Grease white, tube 70g | ||
| 707-884.A | Set of spare parts Pos. 6 / 7 / 8 / 9 / 10 / 11 / 15 / 16 |
