Hex Bore Ag Bearing, 1.000"X2.441"X 0.9450"X0.630"

Hex Bore Ag Bearing, 1.000"X2.441"

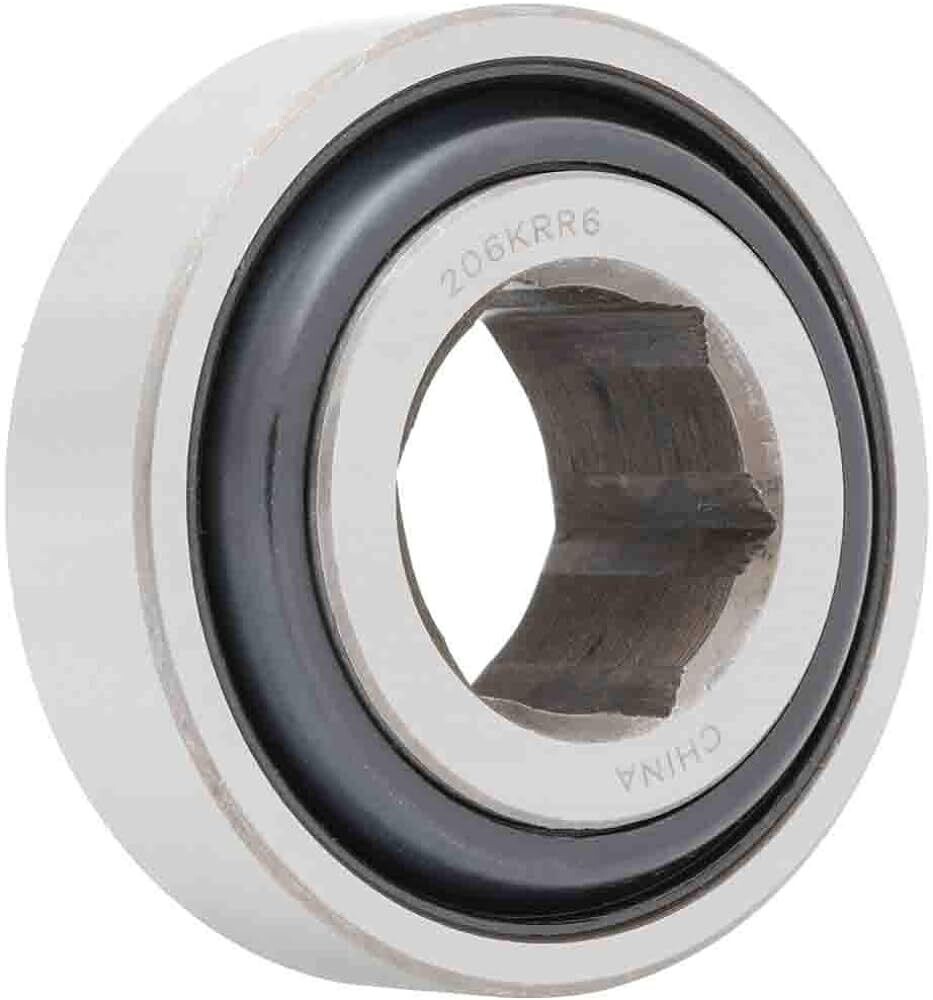

The A-206KRR6-P Hex Bore Ag Bearing is a pre-lubed agricultural bearing designed for 1" hex shaft applications, featuring a cylindrical OD for common implement housings. Built for reliable fit and long service life, it matches multiple cross references including John Deere JD9338, BCA HPC100GP, and Link-Belt 16KB206N, making it a solid replacement option across a wide range of ag equipment.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-206KRR6-P
• Product Type: Hex bore ag bearing (cylindrical OD)
• Hex Shaft Size: 1"
• Bore Diameter: 1.000" (A: 1.0010" / 25.425 mm)
• Bore Type: Hex
• Outside Diameter: 2.440" (Dim D: 2.4409" / 62.000 mm)
• Inner Ring Width: 0.940" (Bi: 0.9450" / 24.000 mm)
• Outer Ring Width: 0.630" (Be: 0.6300" / 16.000 mm)
• Dim B (2): 1.1520" / 29.261 mm
• Overall Width (W): 1.5940" / 40.488 mm
• Lubrication: Pre-lubed
• Replaces / Cross References (as listed):
  • JD9338 (John Deere) / A-JD9338 (A&I Mega-Cross)
  • HPC100GP (BCA / Federal Mogul) / HPC100GP-I (Agri)
  • 16KB206N (Link-Belt)
  • 203389C91 / A-84330028 (IH Combine)
  • Additional crosses: BH10338, JXJD9338, SH203389, VLD3244, WN-JD9338, WNJD9338, 135423 (Ford/New Holland), 206KRR6, 206KRR6AG, 308-206KRR6, 308206KRR6, 851-206KRR6, 851206KRR6

Ideal For

• Agricultural equipment using a 1" hex shaft bearing
• Replace/repair jobs matching JD9338, HPC100GP, or 16KB206N equivalents
• Applications needing a pre-lubed bearing for quick installation
• Implements requiring a cylindrical OD insert bearing with standard ag cross compatibility
