Hex Bore Ag Bearing, 1-1/2X3.346X0.748X1.181

Hex Bore Ag Bearing, 1-1/2X3.346X0.748X1.181

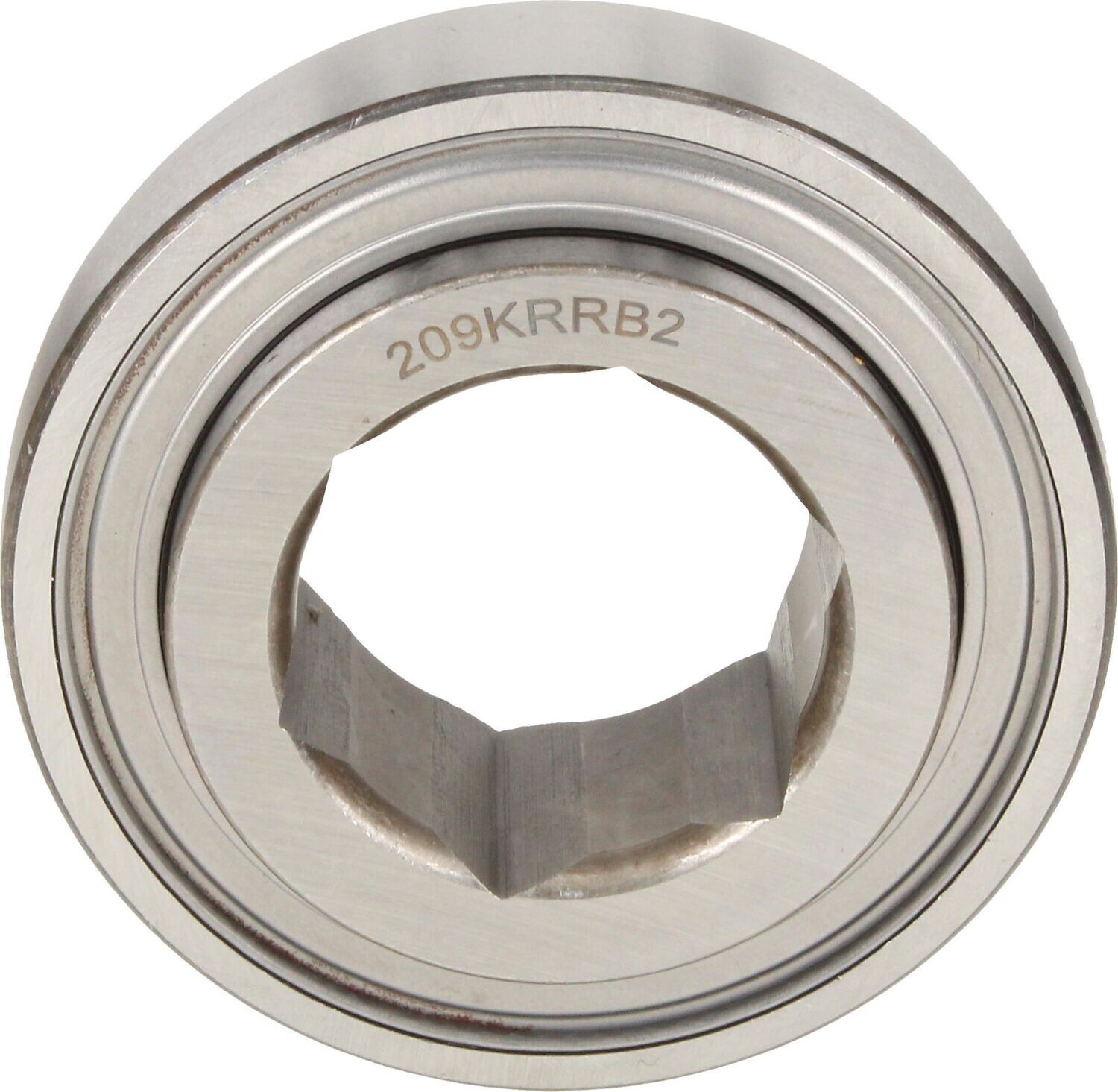

The 209KRRB2 Hex Bore Ag Bearing is a heavy-duty radial/deep-groove ball bearing built for agricultural equipment and highly contaminated environments, featuring a 1.5010" hex bore for secure shaft fit and double seals to help keep out dust, dirt, and moisture. Made from SAE 52100 steel with C3 internal clearance, it’s designed to handle demanding field conditions across a -20° to 300°F operating range while maintaining dependable performance.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 209KRRB2
• Product Type: Radial / Deep Groove Ball Bearing (Ag Bearing)
• Application: Agriculture / High contaminated areas
• Bore Type: Hex
• Bore Diameter (ID): 1.5010 in
• Outside Diameter (OD): 85 mm
• Overall Width: 30 mm
• Inner Ring Width: 30 mm
• Closure Type: Double Sealed
• Snap Ring: Without snap ring
• Internal Clearance: C3
• Bearing Material: SAE 52100 Steel
• Precision Rating: ABEC 1
• Row Type: Single row non-fill slot
• Operating Temperature Range: -20° to 300°F
• Finish Coating: Uncoated
• Weight: 1.2 (unit not specified)
• Additional Dimensions (as provided): 3.346 / 0.748 / 1.181 / Height 2.5 / Width 3.9 (units not specified)

Ideal For

• Agricultural equipment needing a 1.5010" hex bore bearing fit
• Dusty, dirty environments where double seals help protect bearing life
• Applications benefiting from C3 internal clearance for heat/fit variation
• General-duty ag machinery requiring SAE 52100 steel bearing construction
• Equipment operating across wide temperature ranges (-20° to 300°F)
