Hi-Pressure Ball Valve, 3/4"

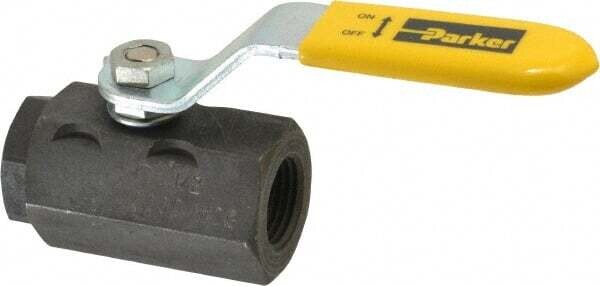

Parker Hi-Pressure Ball Valve, 3/4"

The XV500CS-12 Parker Hi-Pressure Ball Valve, 3/4" is a rugged, general-purpose industrial carbon steel ball valve built for reliable on/off service in demanding systems handling air, oil, or water. Designed for fully open or fully closed operation, it provides dependable sealing and long-term performance when used as intended—note that throttling can lead to premature seal failure and/or difficulty turning the handle depending on conditions.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: XV500CS-12
• Manufacturer Part Number: V500CS-12
• Brand / Series: Parker V500CS
• Product Type: Industrial ball valve
• Nominal Size: 3/4 in
• Connection Type: Female x Female
• Port Type / Thread: NPT
• Mounting Type: In-Line
• Actuation: Lever handle
• Pressure Rating: 2000 psi
• Media Compatibility: Air / Oil / Water
• Flow Coefficient: 23 Cv
• Body Material: Carbon steel
• Stem Material: Zinc plated carbon steel
• Ball Material: Zinc plated carbon steel
• Seal Material: PTEE
• Handle Material: Steel
• Temperature Rating: -4°F to 350°F
• Use Note: Intended for fully open or closed positions; throttling may cause premature seal failure and/or handle operation issues

Ideal For

• On/off shutoff control in air, oil, or water systems
• Applications needing a carbon steel valve body for rugged, reliable performance
• In-line NPT piping runs requiring 3/4" female x female connections
• Systems requiring up to 2000 psi pressure capability
• Users who need a lever-operated valve with a known flow capacity (23 Cv)
