Hub And Spindle Assy, 4-Stud, 1500Lb Capacity

Hub And Spindle Assy, 4-Stud, 1500Lb Capacity

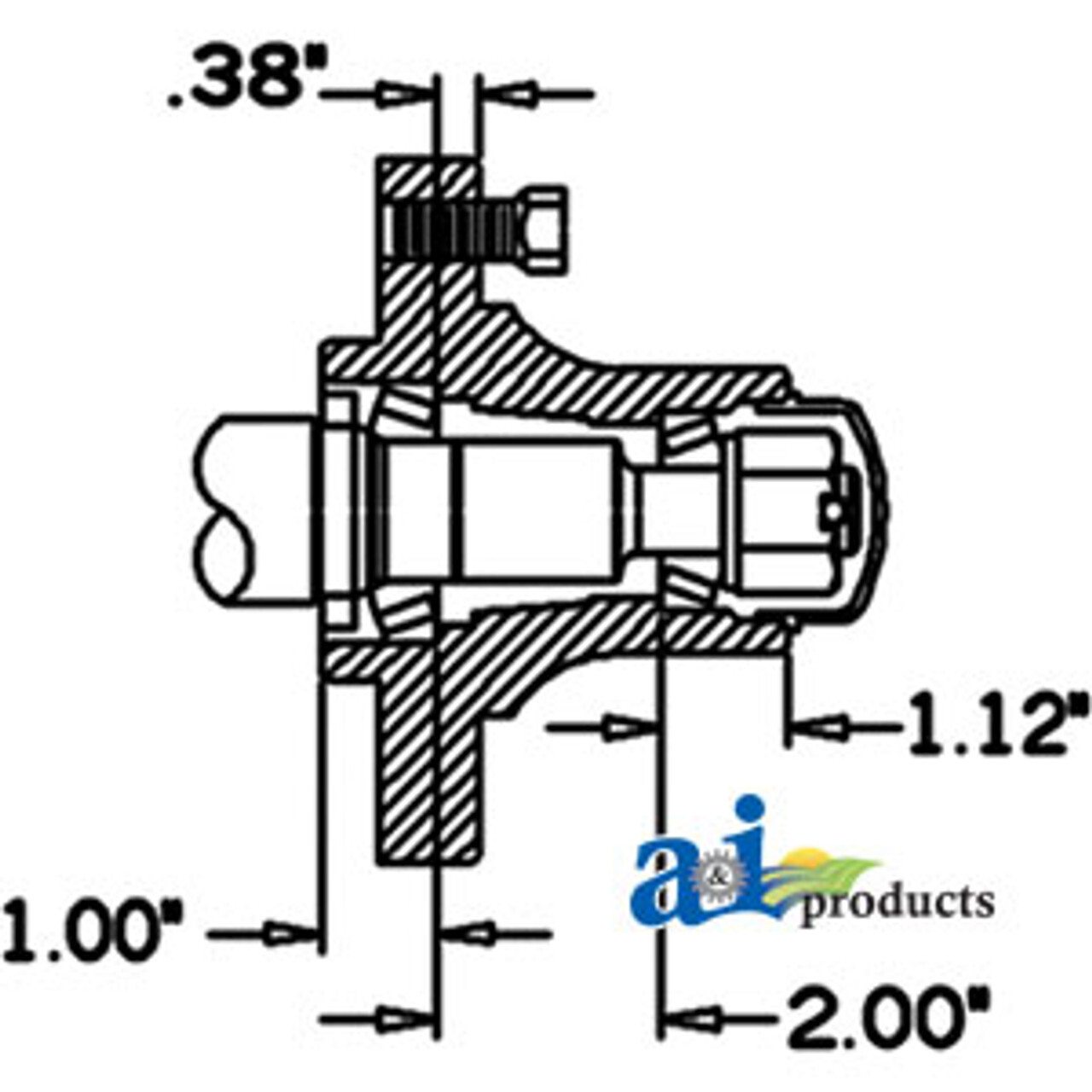

The A-HS150045 Hub and Spindle Assy (4-Stud, 1500 lb capacity) is a bolt-on trailer hub and spindle assembly designed for dependable service on light-duty trailers and equipment applications. Built with a 4-bolt on 5.00" bolt circle and a 3.625" hub pilot, it’s rated for 1,500 lb capacity at 20 mph and comes as a complete kit including the hub with bearing cups and cones, seal, lug bolts, spindle hardware, and dust cap, making it a practical replacement solution when rebuilding or replacing a worn hub/spindle setup.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: A-HS150045
• Product Type: Hub and spindle assembly
• Stud Pattern: 4-stud
• Bolt Pattern: 4 bolt on 5.00" circle
• Hub Pilot: 3.625"
• Capacity Rating: 1,500 lb @ 20 mph
• Inner Bearing Cup: LM67010
• Inner Bearing Cone: LM67048
• Outer Bearing Cup: LM11910
• Outer Bearing Cone: LM11949
• Seal: CR14975
• Hub Cap: HC103
• Wheel Bolts / Lug Bolts: WB12 (Qty 4)
• Includes: Hub w/ cups, cones, seal, lug bolts, spindle, hardware, dust cap
• Replaces: Electric Wheel Q633

Ideal For

• Light-duty trailers needing a complete hub + spindle replacement in one kit
• Rebuilding hubs where you want matched cups, cones, and seal included
• Applications requiring a 4 on 5.00" bolt pattern with 3.625" hub pilot
• Trailers and equipment operating at low speeds where the 1,500 lb @ 20 mph rating applies
• Replacing Electric Wheel Q633 assemblies with an equivalent complete setup
