Hub And Spindle Assy, 6-Stud, 3560Lb Capacity

Hub And Spindle Assy, 6-Stud, 3560Lb Capacity

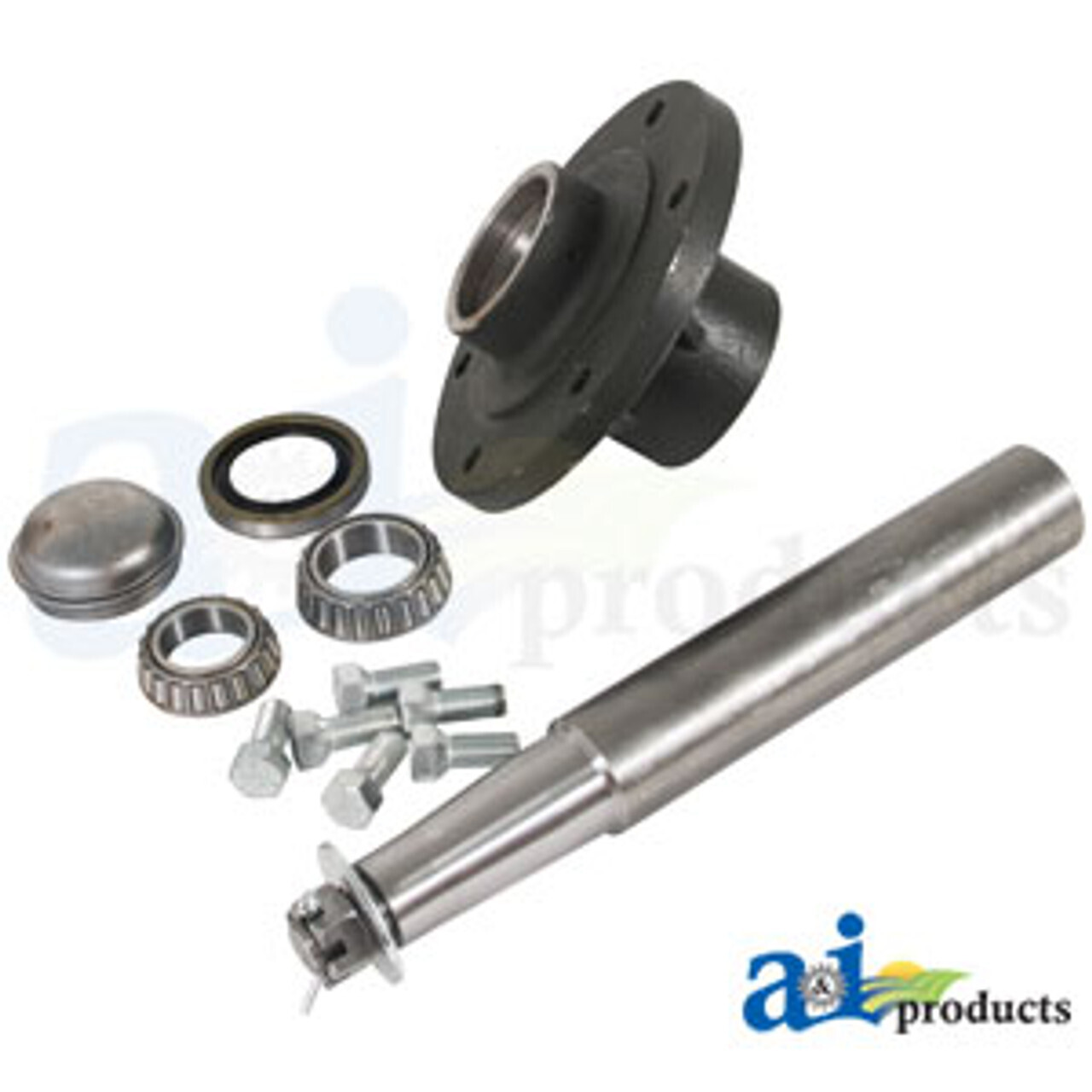

The A-HS30006S6 Hub and Spindle Assembly, 6-Stud (3560 lb Capacity) is a complete, bolt-on hub and spindle kit designed for reliable trailer performance in agricultural, utility, and light equipment applications. Rated at 3000 lb capacity at 20 mph, this assembly features a 6-bolt on 6.00″ bolt circle with a 4.625″ hub pilot, and comes fully equipped with bearings, seal, spindle, hardware, and dust cap for a ready-to-install solution.

Country of Origin: Varies by production batch

Key Features / Specifications

• Part Number: A-HS30006S6
• Product Type: Hub and spindle assembly
• Stud Count / Bolt Pattern: 6-stud, 6.00″ bolt circle
• Hub Pilot Diameter: 4.625″
• Rated Capacity (as stated): 3000 lb @ 20 mph (3560 lb class as listed)
• Bearings / Races (as stated):
  • Inner Cup: LM29710
  • Inner Cone: LM29749
  • Outer Cup: LM67010
  • Outer Cone: LM67048
• Seal: CR17617
• Hub Cap: HC102
• Wheel Bolts: WB12, 1/2″, Qty: 6
• Spindle Included: Yes (A-SP3000)
• Configuration: Bolt-on hub
• Included Components (as stated):
  • Hub (6 bolt on 6″ circle)
  • Inner & outer bearing cones
  • Bearing cups
  • Seal
  • Spindle
  • Wheel bolts (6)
  • Hub cap / dust cap
  • Mounting hardware

Ideal For

• Trailer repairs or replacements needing a complete hub and spindle kit
• Utility, farm, or light equipment trailers with a 6-stud, 6″ bolt circle
• Applications where a bolt-on hub simplifies installation
• Operators wanting a matched bearing, seal, and spindle package to reduce setup time
• Situations requiring dependable performance at rated loads and moderate speeds
