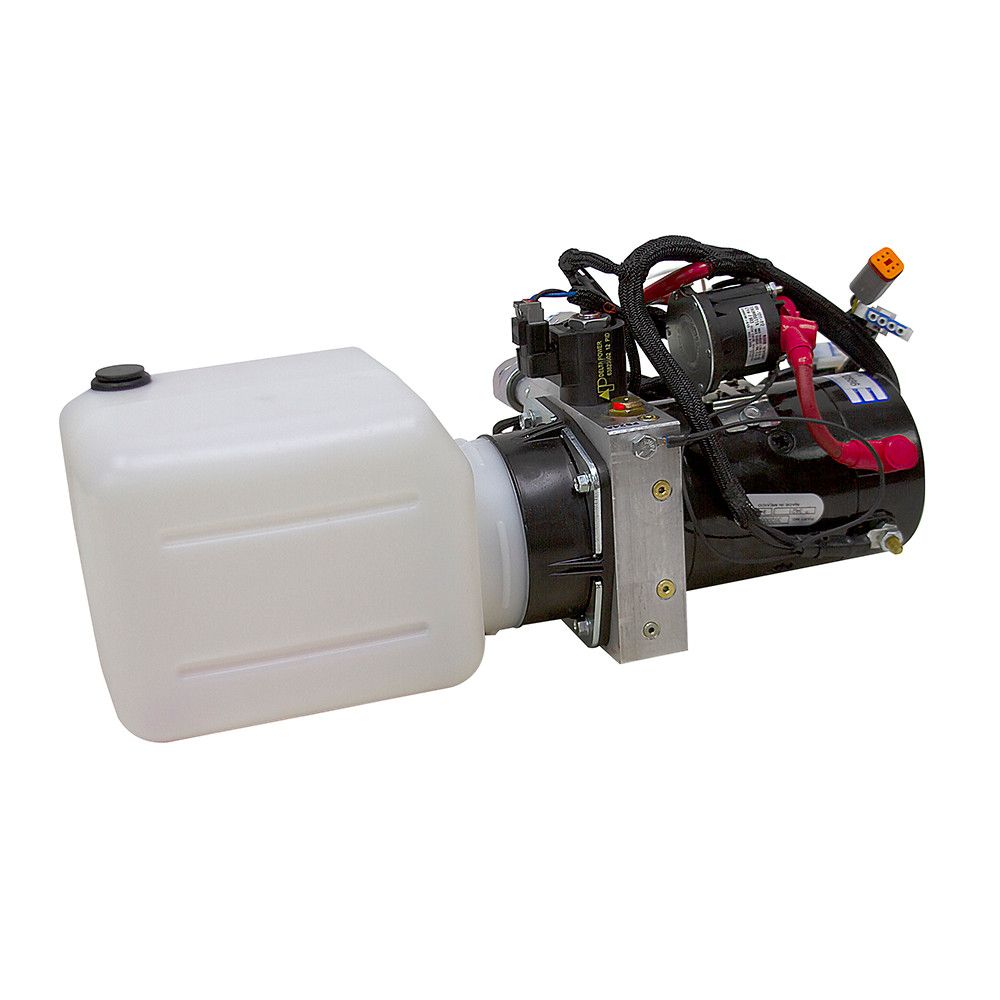

HydraPower 15902886 12V Double Acting Hydraulic Power Pack w/1.25-Gal. Plastic Reservoir

HydraPower 15902886 12V Double Acting Hydraulic Power Pack w/1.25-Gal. Plastic Reservoir

The HydraPower 15902887 Double Acting Hydraulic Power Unit is a 24-volt DC hydraulic power pack designed to operate double-acting hydraulic cylinders in demanding mobile and industrial applications. Equipped with a 1.25-gallon plastic reservoir, adjustable relief valve, integrated flow controls, and a heavy-duty hydraulic pump system, this unit provides dependable hydraulic power for lift, dump, and positioning functions. Unique built-in flow control circuits help prevent hydro-locking and control lowering speeds, protecting equipment from damage during operation. Compact yet powerful, it's designed to deliver controlled hydraulic performance when reliable cylinder operation is critical. In short, it does the heavy lifting so your equipment doesn't have to argue with gravity.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 15902887
• Brand: HydraPower Systems
• Product Type: Double-Acting Hydraulic Power Unit
• Voltage: 24 Volt DC
• Operation Type: Double-Acting Hydraulic System
• Valve Type: Double-Acting Directional Valve
• Valve Operation: 24 Volt DC Solenoid
• Maximum Pressure: 3,700 PSI
• Relief Valve: Adjustable
• Duty Cycle: Intermittent Duty
• Reservoir Capacity: 1.25 Gallons
• Reservoir Material: Plastic
• Port Size: 1/4" NPT
• Mounting Orientation: Horizontal
• Overall Dimensions: 19-1/2" L x 9" W x 7-3/4" H
• Shipping Weight: 32 lbs
• Quick Disconnects Included:
  • PDS QC6000-14F Female
  • PDS Q6000-14M Male
• Coupler Halves: Not included
• Flow Control Features:
  • 0.15 GPM bleed circuit to help prevent hydro-locking
  • 2.5 GPM lift-descent circuit to control lowering speed and prevent load overrun
• Pressure Setup: Relief valve must be adjusted to application working pressure prior to use
• Hydraulic Function: Designed for extending and retracting double-acting hydraulic cylinders

Ideal For

• Hydraulic lift and lowering applications
• Dump trailers, utility equipment, and material handling systems
• Mobile hydraulic systems requiring double-acting cylinder control
• Equipment needing controlled descent and load protection
• Operators who prefer smooth, controlled hydraulic movement instead of discovering what happens when a load decides to come down faster than expected.
