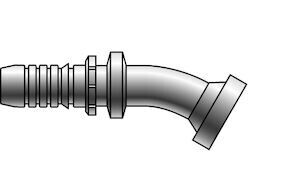

Hydraulic 22.5° Ell Fitting, 1"X1-1/4" Code 62 Flange

Hydraulic 22.5° Ell Fitting, 1"X1-1/4" Code 62 Flange

The 16GS-20FLH22 Gates® GlobalSpiral™ Hydraulic 22.5° Elbow Fitting, 1″ × 1-1/4″ Code 62 Flange is a high-performance, no-skive coupling designed for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. Its two-piece no-skive design helps speed assembly while reducing labor, errors, and contamination risks, and the TuffCoat™ plating provides enhanced corrosion resistance for harsh operating environments. Built to support demanding hydraulic systems, GlobalSpiral thread ends are rated for working pressures up to 6,000 PSI.

Country of Origin: Varies by production batch

Key Features / Specifications

• Brand / Line: Gates® GlobalSpiral™
• Part Number: 16GS-20FLH22
• Product Type: Hydraulic 22.5° elbow coupling
• Connection / Style: Code 62 flange
• Hose ID 1: 1″
• Flange Nominal Size: 1-1/4″
• Flange Outside Diameter: 2.13″
• Flange Thickness: 0.41″
• Overall Length: 6.61″
• Cutoff Length: 4.52″
• Drop Length: 0.59″
• Design: Two-piece, no-skive coupling (reduces assembly time and contamination risk)
• Pressure Capability: GlobalSpiral thread ends rated up to 6,000 PSI
• Corrosion Protection: TuffCoat™ plating for improved corrosion resistance

Ideal For

• High-pressure hydraulic hose assemblies using spiral-wire hose in demanding service
• Applications needing a compact 22.5° elbow to route hoses with less stress
• Systems requiring a 1″ hose ID coupling with 1-1/4″ Code 62 flange connection
• Shops wanting faster builds with no-skive assembly to reduce labor and errors
• Equipment operating in corrosive environments where TuffCoat™ protection helps extend service life
