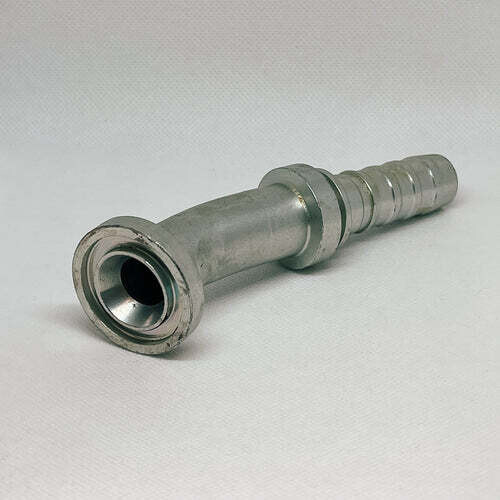

Hydraulic 22.5° Ell Fitting, 1"X1" CAT Flange

The 16GS-16FLC22 Hydraulic 22.5° Ell Fitting (1" hose ID × 1" CAT flange) is a high-performance Gates® GlobalSpiral 22.5-degree flange coupling engineered for extremely high-pressure, high-impulse spiral-wire hydraulic hose assemblies. Its two-piece, no-skive design speeds assembly while reducing fabrication errors and contamination, and TuffCoat plating provides exceptional corrosion resistance for tough service environments.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Part Number: 16GS-16FLC22
• Brand / Series: Gates® GlobalSpiral
• Product Type: Hydraulic 22.5° elbow flange coupling
• Hose ID: 1"
• Flange Nominal Size: 1" CAT flange
• Design: Two-piece, no-skive coupling for faster assembly and reduced contamination risk
• Pressure Capability (Series): GlobalSpiral thread ends rated up to 6,000 psi (application dependent)
• Plating: TuffCoat (more than five times better corrosion resistance than SAE ASTMB117 specification)
• Thread Options (Series): Available in 80+ thread configurations across the GlobalSpiral line for broad application coverage

Dimensions / Measurements

• Flange Outside Diameter: 1.88 in
• Flange Thickness: 0.56 in
• Overall Length: 6.02 in
• Cutoff Length: 3.78 in
• Drop Length: 0.67 in

Ideal For

• High-pressure hose assemblies using 1" spiral-wire hydraulic hose
• Applications needing a 22.5° CAT flange connection to improve routing and reduce bend stress
• Hose fabrication where no-skive fittings reduce assembly time and contamination
• Equipment operating in harsh conditions where enhanced corrosion resistance is beneficial
