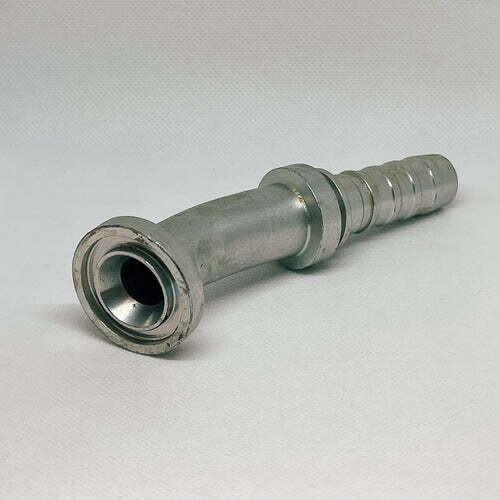

Hydraulic 22.5° Ell Fitting, 3/4"X3/4" CAT Flange

The 12GS-12FLC22 Hydraulic 22.5° Ell Fitting (3/4" hose ID × 3/4" CAT flange) is a high-performance Gates® GlobalSpiral 22.5-degree flange coupling engineered for extremely high-pressure, high-impulse spiral-wire hydraulic hose assemblies. Its two-piece, no-skive design speeds up fabrication while reducing errors and contamination risk, and TuffCoat plating delivers superior corrosion resistance for demanding service conditions.

Country of Origin: Varies by production batch

Key Features / Specifications

• Model / Part Number: 12GS-12FLC22
• Brand / Series: Gates® GlobalSpiral
• Product Type: Hydraulic 22.5° elbow flange coupling
• Hose ID: 3/4"
• Flange Nominal Size: 3/4" CAT flange
• Design: Two-piece, no-skive coupling for faster assembly and reduced contamination risk
• Pressure Capability (Series): GlobalSpiral thread ends rated up to 6,000 psi (application dependent)
• Plating: TuffCoat (more than five times better corrosion resistance than SAE ASTMB117 specification)
• Thread Options (Series): Available in 80+ thread configurations across the GlobalSpiral line for broad application coverage

Dimensions / Measurements

• Flange Outside Diameter: 1.63 in
• Flange Thickness: 0.56 in
• Overall Length: 5.63 in
• Cutoff Length: 3.62 in
• Drop Length: 0.63 in

Ideal For

• High-pressure hose assemblies using 3/4" spiral-wire hydraulic hose
• Applications needing a 22.5° CAT flange connection to improve routing and reduce bend stress
• Hose fabrication where no-skive fittings reduce assembly time and contamination
• Equipment operating in harsh environments where enhanced corrosion resistance is beneficial
