Hydraulic 45 Deg Elbow Adaptor, 1/4"MJ X 1/4"MP

Hydraulic 45 Deg Elbow Adaptor, 1/4"MJ X 1/4"MP

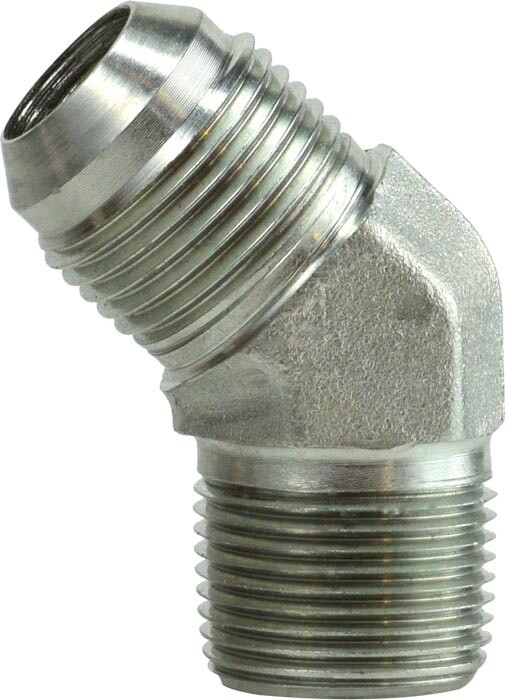

The 2503X0404 Hydraulic 45° Elbow Adapter is a high-pressure hydraulic fitting designed to connect JIC hose ends to NPT pipe threads while providing a 45-degree directional change in the hydraulic line. Constructed from durable carbon steel, this adapter provides reliable strength and leak-resistant performance in demanding hydraulic systems. The male JIC 37° flare on one end ensures a secure metal-to-metal seal, while the male NPT threaded end connects easily to tapered pipe ports. With a 5000 PSI working pressure rating, it’s built to handle serious hydraulic work without forcing hoses into awkward bends.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2503X0404
• Product Type: Hydraulic adapter fitting
• Fitting Shape: 45° elbow
• End 1 Type: Male JIC (37° flare)
• End 1 Size: JIC 4 (7/16"-20 thread)
• End 2 Type: Male NPT
• End 2 Size: 1/4" NPT (1/4"-18 tapered thread)
• Connection Size: 1/4" MJ x 1/4" MP
• Material: Carbon steel
• Working Pressure: Up to 5000 PSI
• Sealing Method: 37° flare seal (JIC) and tapered NPT thread
• Application: Adapts JIC hydraulic hose connections to NPT threaded ports
• Performance: Designed for secure sealing in high-pressure hydraulic systems

Ideal For

• Hydraulic system installation and repair
• Connecting JIC hose ends to NPT threaded ports
• Agricultural, construction, and industrial hydraulic equipment
• Hydraulic lines requiring a 45° directional change
• Mechanics who appreciate fittings that route hoses neatly instead of forcing them into uncomfortable positions
