Hydraulic 45 Deg Elbow Adaptor, 1/4"MJ X 3/8"MP

Hydraulic 45 Deg Elbow Adaptor, 1/4"MJ X 3/8"MP

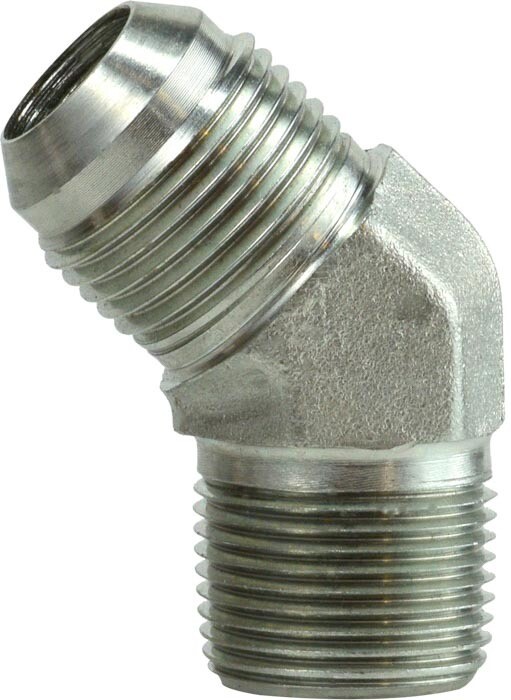

The 2503X0406 Hydraulic 45° Elbow Adaptor is a compact hydraulic fitting designed to connect JIC flare fittings to NPT pipe threads while redirecting flow at a 45° angle. Featuring a 1/4" male JIC connection on one end and a 3/8" male NPT connection on the other, this adaptor allows hydraulic hoses and components with different thread types to connect securely while improving hose routing. Constructed from durable carbon steel and rated for working pressures up to 5000 PSI, it provides dependable sealing and strength for demanding hydraulic systems—because sometimes a gentle 45° turn is all it takes to make a tight hydraulic installation behave.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 2503X0406
• Product Type: Hydraulic 45° elbow adaptor
• Fitting Shape: 45° elbow
• End 1 Connection: Male JIC
• End 1 Size: JIC 6 (9/16"-18, 37° flare)
• End 2 Connection: Male NPT
• End 2 Size: 1/4" NPT (1/4"-18 tapered thread)
• Configuration: 1/4" MJ × 3/8" MP
• Working Pressure: Up to 5000 PSI
• Material: Carbon steel
• Seal Type: 37° flare metal-to-metal seal on JIC side
• Thread Type: NPT tapered pipe thread
• Function: Connects JIC hydraulic hose fittings to NPT ports while redirecting flow

Ideal For

• Hydraulic systems requiring JIC-to-NPT connections
• Hose routing where a 45° angle reduces stress or space issues
• Agricultural, industrial, and construction equipment
• Hydraulic hose assembly and repair
• Mechanics who know that a well-placed 45° fitting can make a messy hose setup suddenly look like it was planned all along
