Hydraulic 45 Deg Elbow Adaptor, 3/8"MJ X 1/4"MP

Hydraulic 45 Deg Elbow Adaptor, 3/8"MJ X 1/4"MP

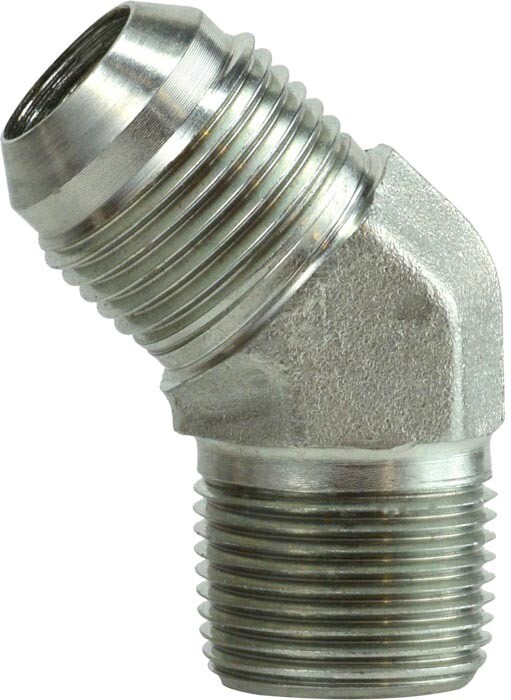

The 2503X0604 Hydraulic 45° Elbow Adaptor (3/8" MJ x 1/4" MP) is a high-pressure hydraulic fitting designed to connect JIC flare fittings to NPT pipe threads while changing flow direction by 45 degrees. Built from durable carbon steel and rated for working pressures up to 5,000 PSI, this adapter provides a reliable transition between JIC 37° flare hydraulic lines and tapered NPT ports. The 45° elbow design helps reduce hose strain and improve routing, making installations cleaner and easier—because hydraulic systems behave much better when hoses aren’t forced into awkward angles.

Country of Origin
Varies by production batch

Key Features / Specifications

• Model / Part Number: 2503X0604
• Product Type: Hydraulic elbow adapter
• Fitting Shape: 45° Elbow
• End 1 Type: Male JIC (MJ)
• End 1 Size: JIC 6 (9/16"-18, 37° flare)
• End 2 Type: Male NPT (MP)
• End 2 Size: 1/4" NPT (1/4"-18 tapered pipe thread)
• Working Pressure: Up to 5,000 PSI
• Material: Carbon steel
• Seal Type: 37° flare seal on JIC side
• Function: Connects JIC hydraulic hose fittings to NPT ports while redirecting flow
• Design Benefit: 45° angle helps reduce hose stress and improves routing

Ideal For

• Hydraulic hose installations requiring directional change
• Connecting JIC hydraulic lines to NPT threaded components
• Agricultural, construction, and industrial hydraulic systems
• Repairs where high-pressure durability and better hose routing are needed
• Mechanics who know that a well-placed elbow can save a hose from a short and stressful life
