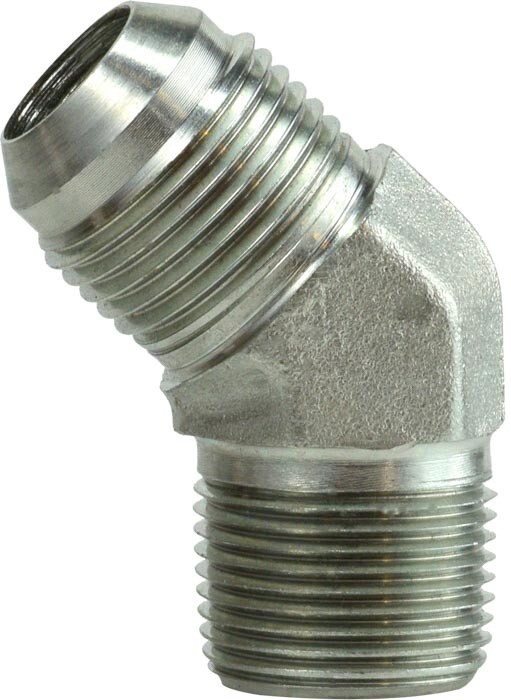

Hydraulic 45 Deg Elbow Adaptor, 5/16"MJ X 1/4"MP

Hydraulic 45 Deg Elbow Adaptor, 5/16"MJ X 1/4"MP

A compact hydraulic 45° elbow adapter designed for efficient line routing, the 2503X0504 Hydraulic Elbow Adapter provides a secure transition between JIC flare and NPT threaded connections. Built from durable carbon steel and rated for working pressures up to 5000 PSI, this fitting is engineered for demanding hydraulic systems where strength and leak resistance matter. The 45° angle allows smoother hose alignment and reduces stress on hydraulic lines—because hydraulic plumbing works best when it isn’t forced into awkward bends.

Country of Origin
Varies by production batch

Key Features / Specifications

• Part Number: 2503X0504
• Product Type: Hydraulic 45° Elbow Adapter
• Fitting Angle: 45°
• Material: Carbon Steel
• Working Pressure: 5000 PSI
• End 1 Type: Male JIC
• End 1 Size: JIC 5 (1/2"-20, 37° Flare)
• End 2 Type: Male NPT
• End 2 Size: 1/4" NPT (1/4"-18 Tapered)
• Designed for hydraulic fluid transfer systems
• 37° JIC flare connection provides dependable, leak-resistant sealing
• Allows efficient hose routing with reduced line stress
• Heavy-duty carbon steel construction for long service life in high-pressure applications

Ideal For

• Hydraulic equipment and machinery
• Agricultural and industrial hydraulic systems
• Routing hydraulic lines where a 45° connection improves alignment
• Hydraulic maintenance and system installation requiring durable fittings (because hydraulic systems behave much better when the fittings point the right direction)
